Replacing Front Door Window

REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT FRONT DOOR WINDOW GLASS




Except Convertible:
Remove and install door trim panel. Service and Repair

Pull off plastic sheet.

Installation:
Replace damaged plastic sheet.

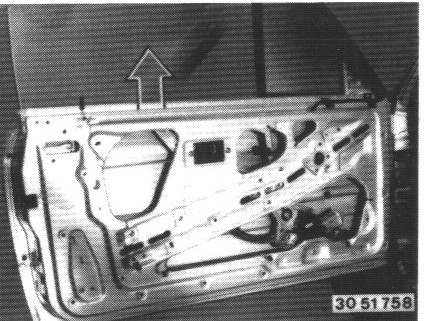

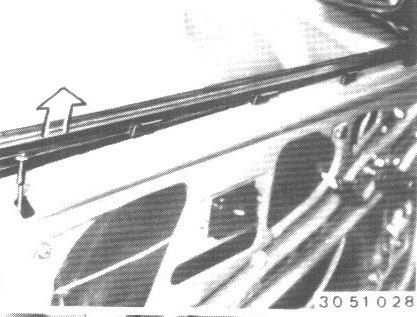

Pull off inside window recess cover,




Unscrew bolts.

Note: Hold window glass tight.

Installation:
Adjust window. Adjustments

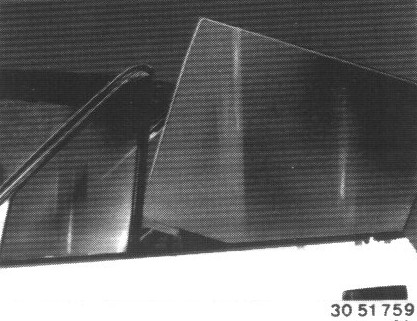

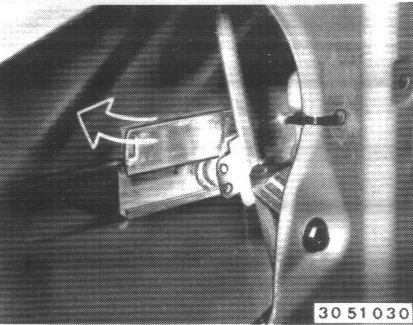

Swing front end of window glass out of guide roller,

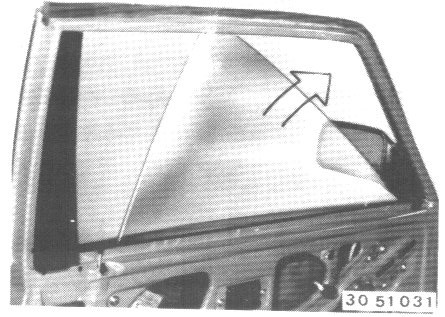

Remove door window glass.





Convertibles:
Remove door trim panel. Service and Repair

Pull off plastic sheet.

Installation:
Replace damaged plastic sheet.




Lift out spreader rivets.

Remove trim panel. Service and Repair

Installation:
Use new spreader rivets, if necessary.

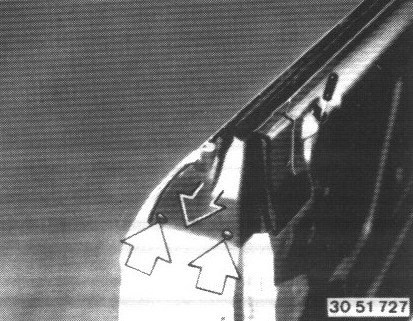

Remove outside window recess cover.

Run down the window - unscrew screws.

Installation:
Adjust window. Adjustments

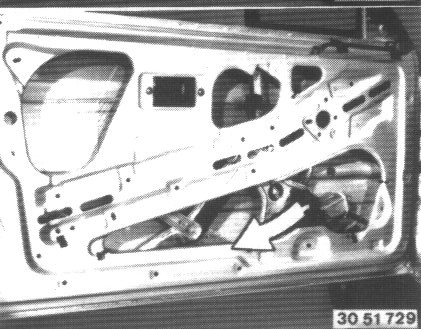

Pull off plug and slide window regulator forward out of the guides.

Installation:
Guide guiding rollers of window regulator into rails of window glass.

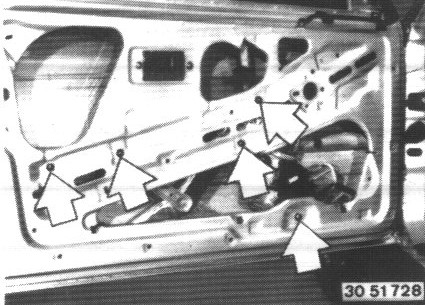

Align mounting holes of window regulator.

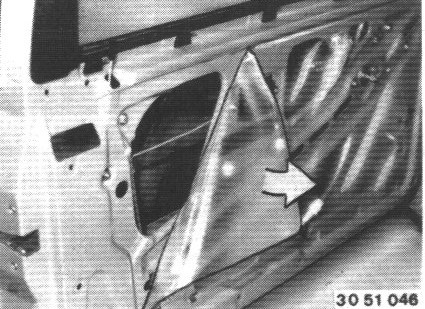

Pull out window glass from above.




Installation:
Insert window glass at inclirsation - turn slightly - and slide down parallel.
