Replacing Shift Rod Joint

- Unscrew propeller shaft on transmission.
- Remove the vibration damper if applicable.
- Engage fifth gear.

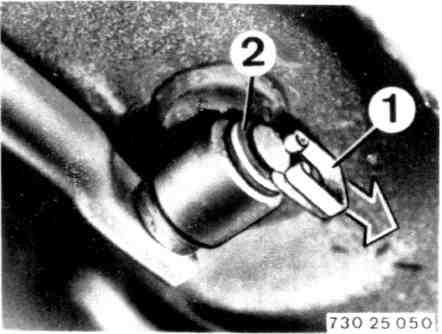

- Lift out circlip (1).
- Remove washer (2).

Installation Note:
Note direction of shift rod installation to insure proper installation.

- Pull out shift rod.

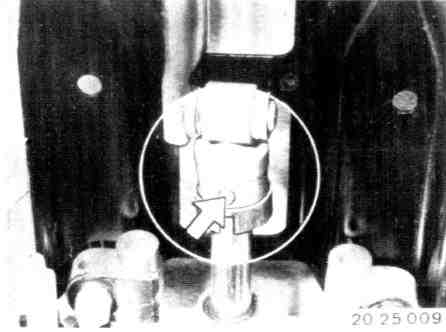

- Push back the locking sleeve.

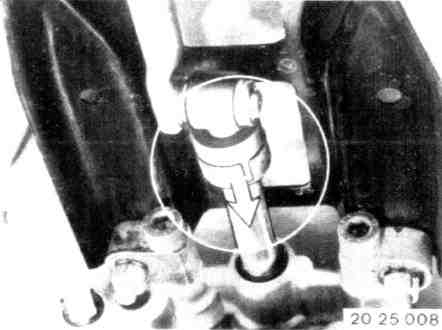

- Drive out pin.

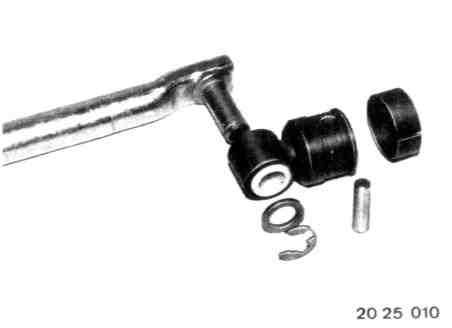

- Pull out shift rod with joint.





Installation Note:
Lubricate bearing sleeve and shift rod joint with Molykote Longterm 2.

NOTE: Bearing sleeve may be offset, if so note the offset for proper installation.
