Input Shaft Seal

Transmission Removed:

- Remove guide sleeve.

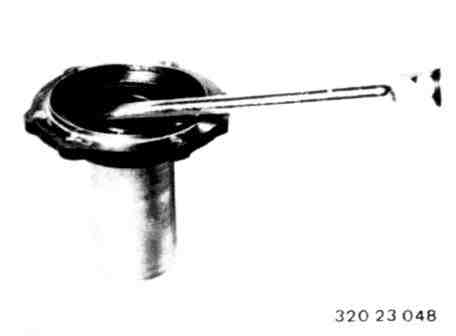

- Remove radial oil seal.

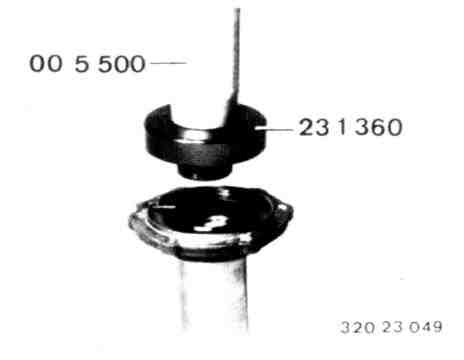

- Drive in radial oil seal with Special Tools 23 1 360 and 00 5 500. Open end faces transmission case.
- Lubricate sealing lip with oil.
