Replacing Propeller Shaft Bearing

(Propeller Shaft Removed)

- Remove propeller shaft. Service and Repair

- Pack center with a viscous grease.





- Insert a 14 mm (0.551") diameter mandrel.

- Apply hammer knocks on mandrel to produce pressure and drive out the center.

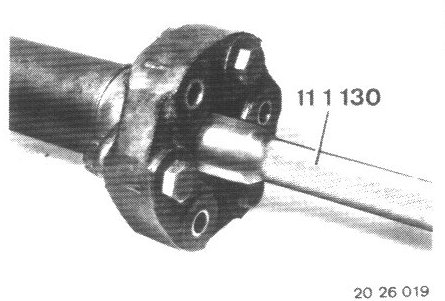

- Lubricate center with Molykote Long-term 2 and drive in with Special Tool 1 11 130.

- Sealing lip faces out.

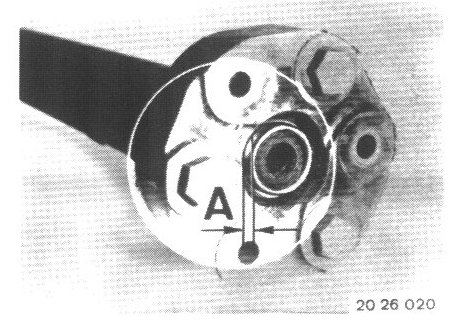

- Protrusion A = 4.5 mm (0.177").
