Overhauling Clutch Slave Cylinder

- Clean slave cylinder and inside parts with alcohol.
- Replace entire slave cylinder, if cylinder bore has scoring or corrosion.
- Coat cylinder bore and grooved cup lightly with ATE brake cylinder paste.
- Install repair kit.

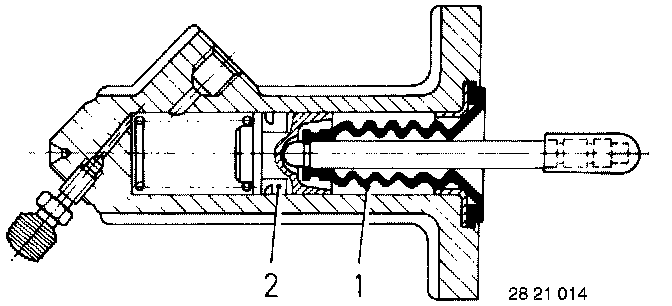

NOTE: Only use repair kit of same make as pertinent slave cylinder, consisting of:





1. Protective cap
2. Grooved cup
Retaining ring
Toothed ring
