Removing and Installing

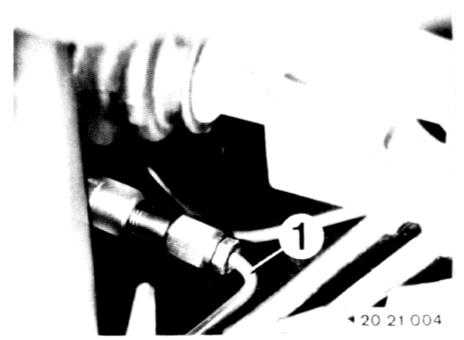

Disconnect pipe (1) to slave cylinder.





Unscrew cap on brake fluid tank. Remove float container (2).
Draw off brake fluid in tank to lower level to connection for the filling pipe.





Remove instrument panel trim at bottom left.

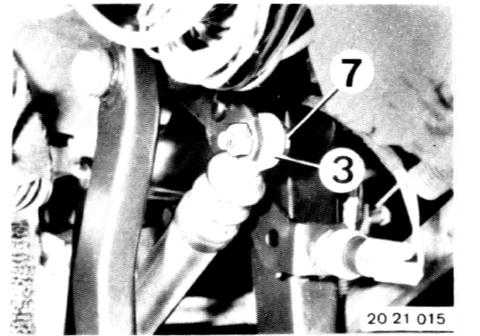

Disconnect piston rod (3) on the clutch pedal.

Installation Note:
Adjust the clutch pedal with eccentric bolt (7).





Installation Note:

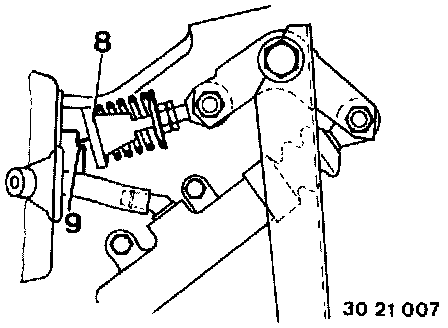

Engage Over-center spring (8) in guide tab (9) on the pedal base prior to installation of the piston rod (3).

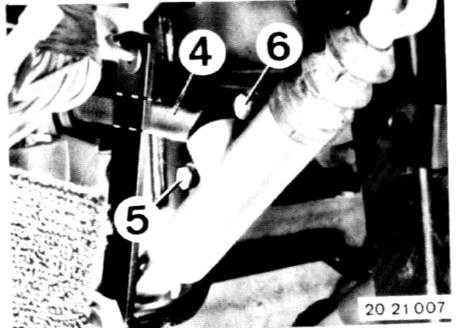

Pull out filling pipe (4). Unscrew bolts (5 and 6).
Remove master cylinder.

Installation Note:
Bleed clutch.
