ZF4HP-22/24EH
>>
Position D and Shift Points
Position D and Shift Points

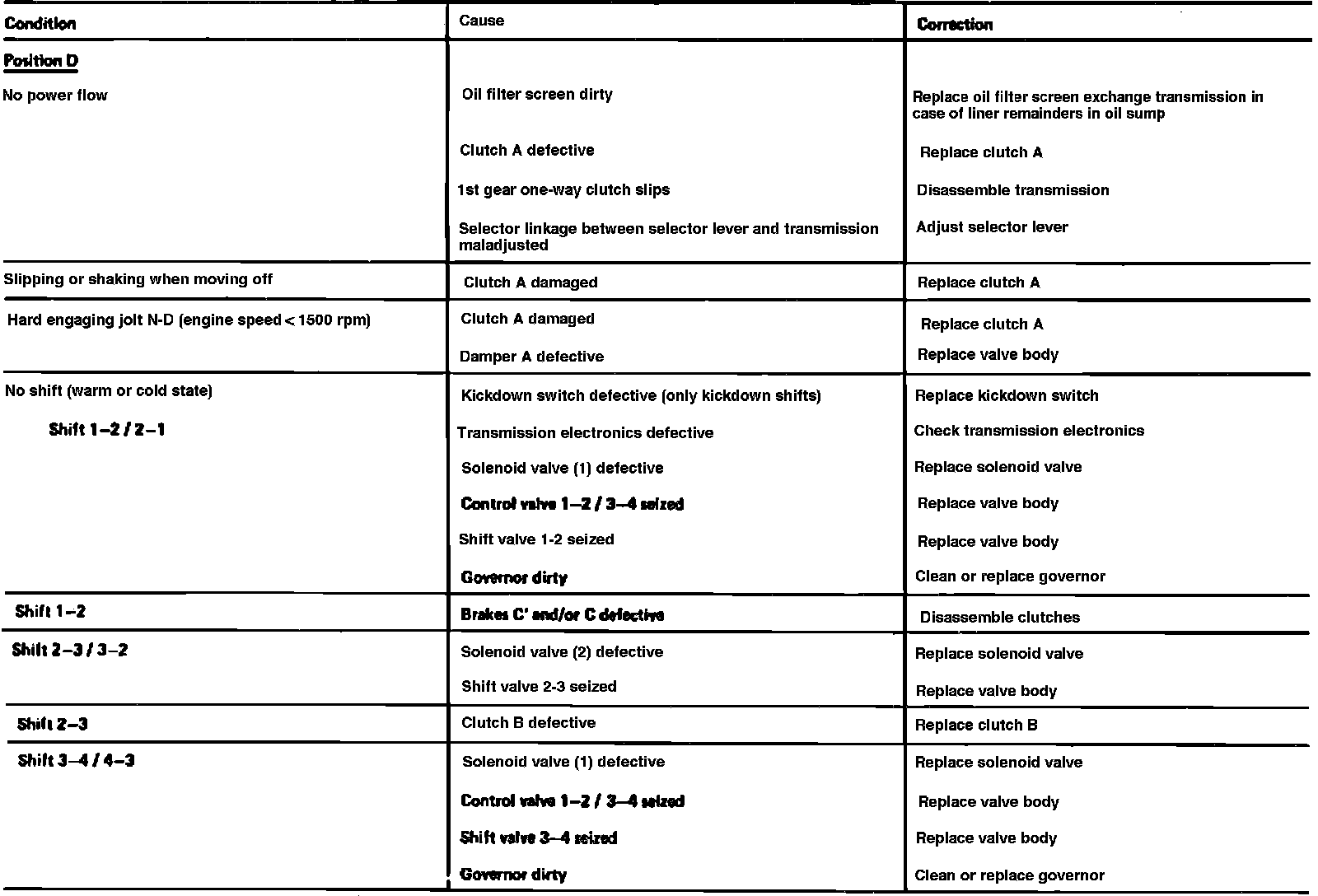

Fig. 2 Troubleshooting Chart (Part 2 Of 10):

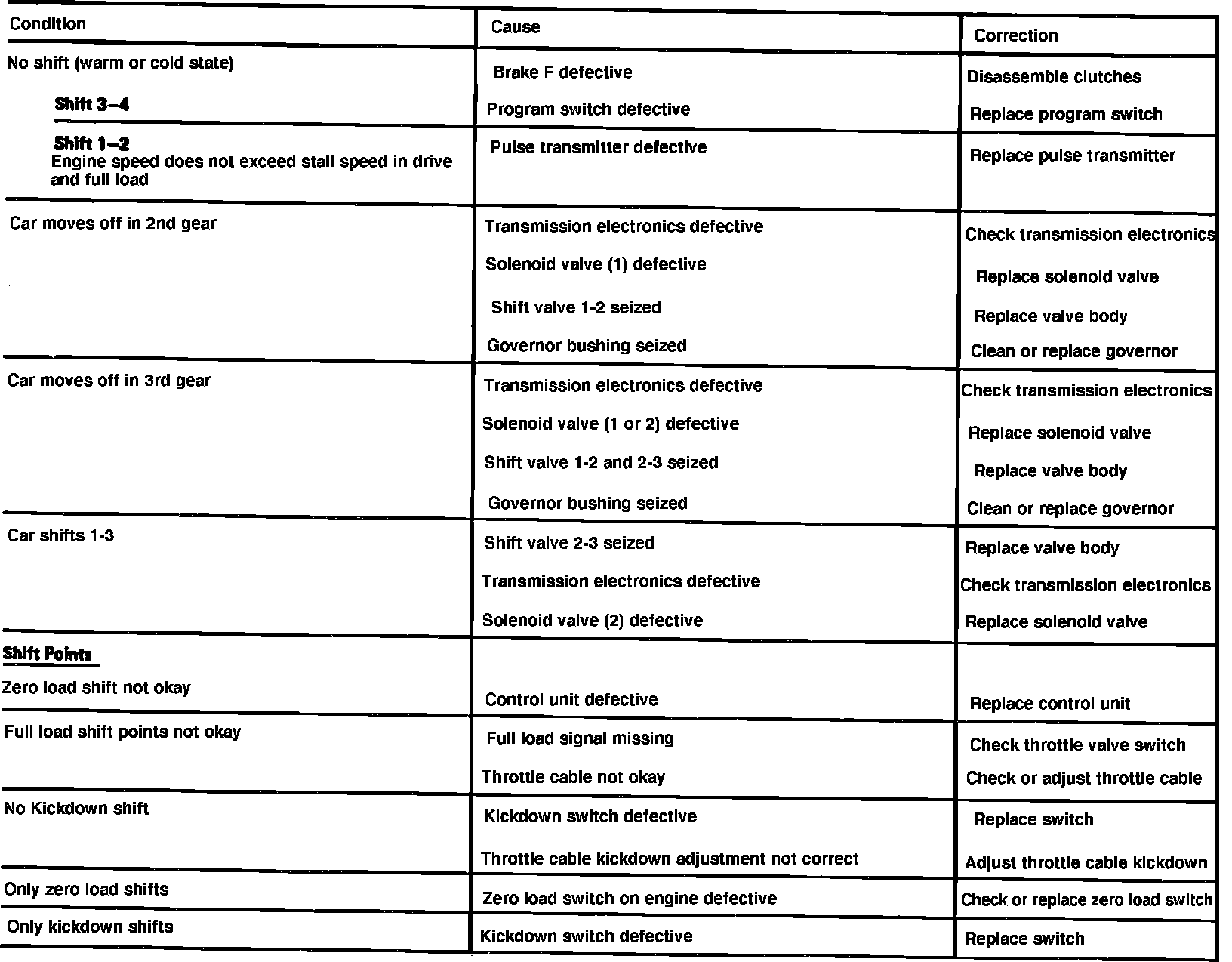

Fig. 2 Troubleshooting Chart (Part 3 Of 10):
