Home
>>
BMW
>>
1992
>>
318i Convertible (E30) L4-1796cc 1.8L DOHC (M42)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
ZF4HP-22/24EH
>>
General Info., Noise, Leakage
General Info., Noise, Leakage

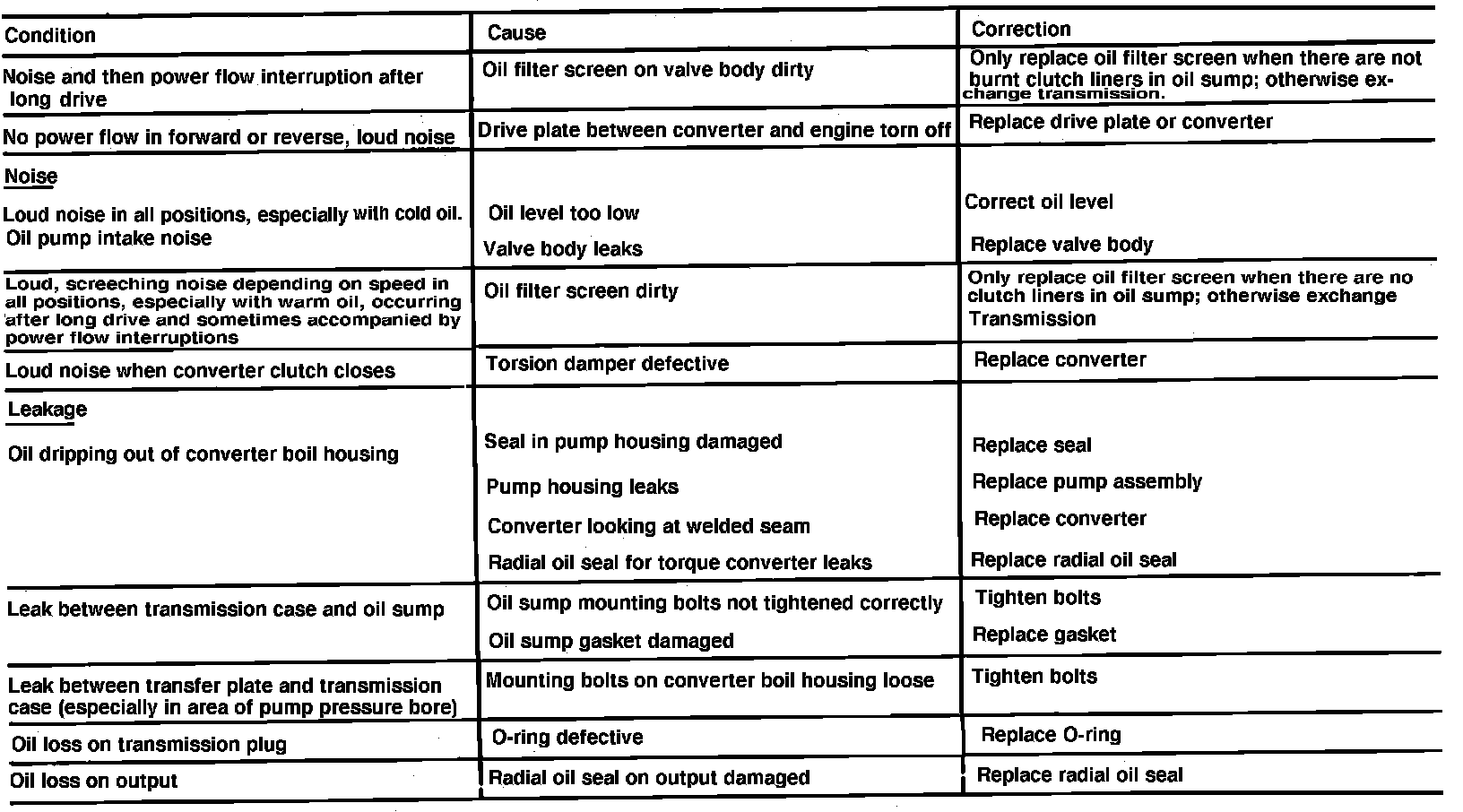

Fig. 2 Troubleshooting Chart (Part 6 Of 10):

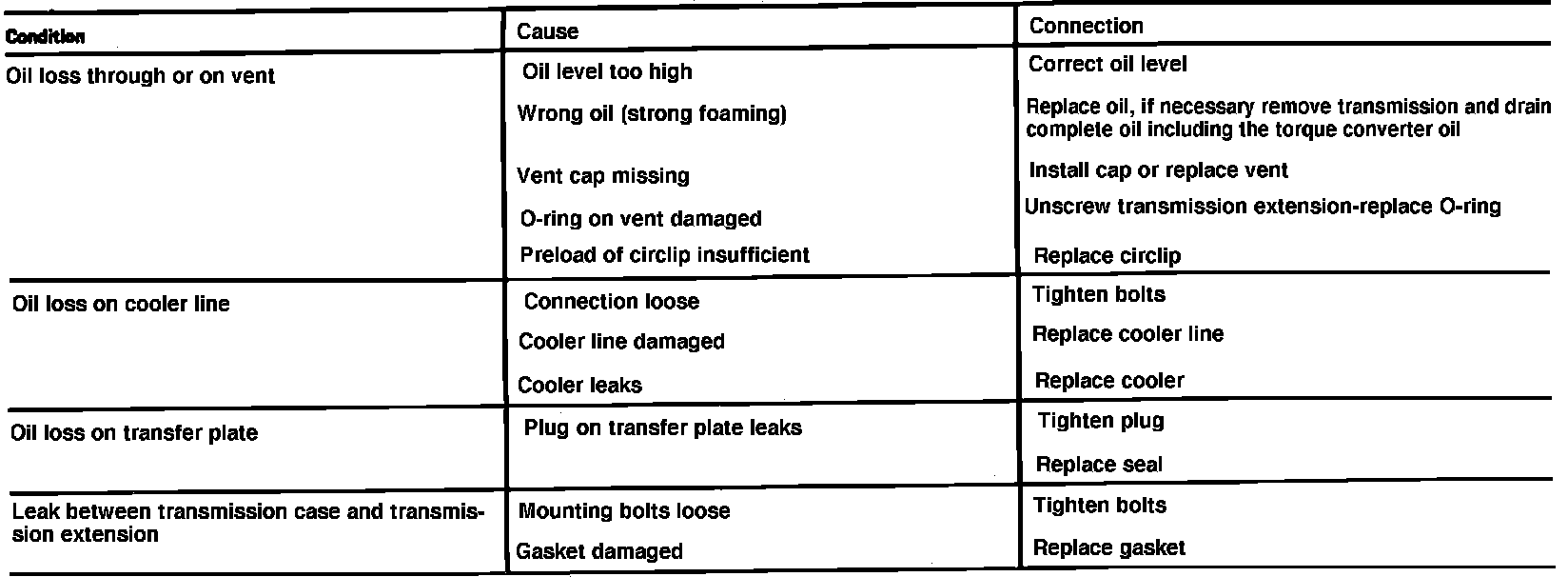

Fig. 2 Troubleshooting Chart (Part 7 Of 10):
