Fluid Filter - A/T: Service and Repair

REMOVING AND INSTALLING OR REPLACING TRANSMISSION OIL FILTER SCREEN
- Remove transmission oil sump (pan). Service and Repair

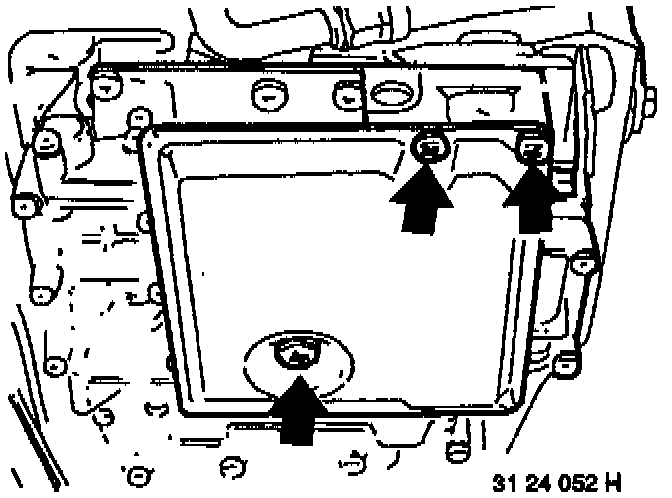

- Unscrew oil filter screen.

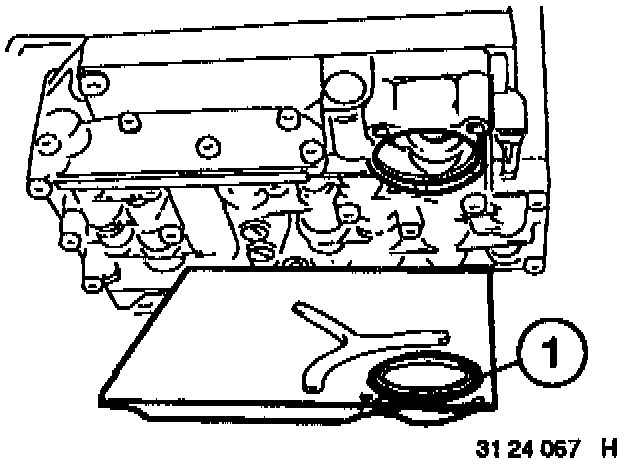

- Check rubber ring (1), replacing if necessary.
- Install new oil filter screen.

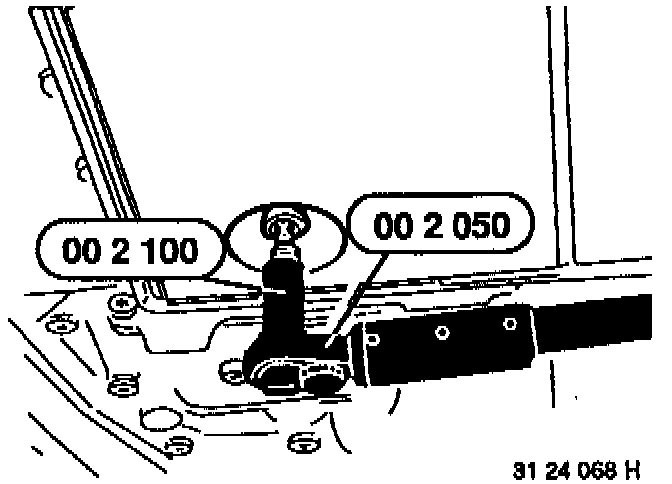

- Torque screws to 8 Nm (6 ft lb). Tighten Torx bolts with Special Tools 00 2 100 and 00 2 050.
- Refill transmission. Service and Repair
