Checking/Refilling Transmission Oil

Checking/Refilling Oil Level
- Remove the dip stick.

NOTE: The oil dipstick can be pulled out only after tilting the grip.

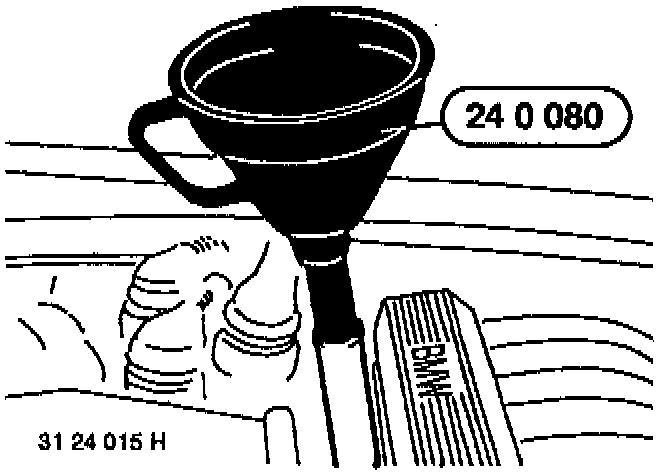

- Use special tool 24 0 080 (measuring funnel) to pour in ATF.

NOTE: Approx. oil change volume 3.0 ltr (3.2 qts).
Total oil volume (torque convert drained) 7.5 ltr. (7.9 qts).





- Check oil level with the selector lever in "P", engine running at idle speed and car parked on level floor or ground, adding ATF if necessary.

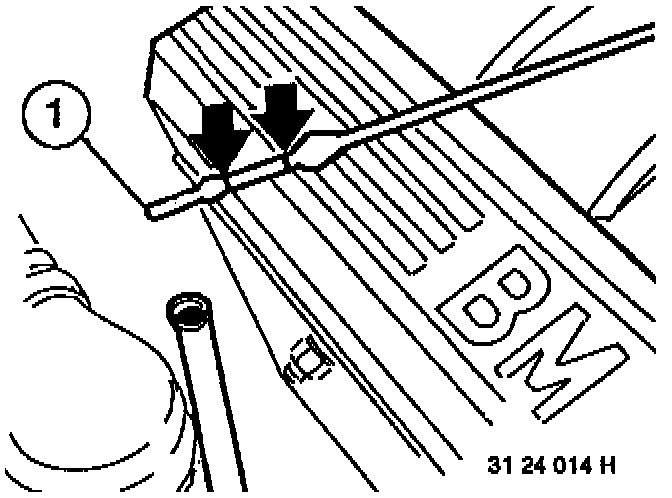

- Oil level should not be below ball (1) after a test drive and with a transmission oil temperature of approx. 40°C (105°F).
- Oil level should be between the min. and max. marks with an oil temperature of approx. 80°C (175°F).
- Amount of oil between the min. and max. marks is approx. 0.3 litre (0.6 pint).

NOTE: Use only lint free cloth for cleaning dip stick.

CAUTION: Oil Level Too High: Strong foaming, splash loss, high temperature when driving fast, oil lost via the vent.

CAUTION: Oil Level Too Low: Valves rattling, foaming, engine slipping and general operating disturbances.
