Correction and Campaign Label

Correction:
Replace the throttle housing with a new version (part number 13 54 1 739 263), which contains a modified heating system in conjunction with the re-routing of the primary crankcase vent hose, from the intake bellows boot to the bottom of the throttle housing. The new throttle housing also includes an internal "calibrated" bypass of the throttle plate for secondary crankcase breathing during idle and part load engine conditions.


Recall Campaign Label Instructions:

This recall campaign has been assigned code number 67. After the prescribed work has been performed, obtain a label (SD 91-013) and:

a) emboss your BMW dealer warranty number in the middle of the label;

b) punch out code number 67 printed on the label;

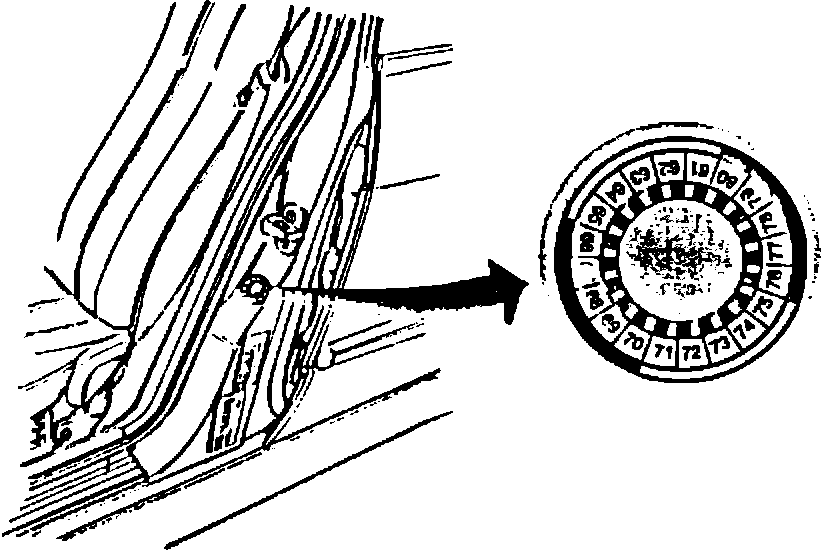

c) bend label to crease an edge and remove the backing paper. Then affix it to the driver's door as shown.



If the car already has a label from a previous Service Action/Recall Campaign, affix this label next to the old one. Do not affix one label on top of another one because a number from an underlying label could appear in the punched out hole of the new label.
