Removing and Installing Power Steering Pump

- Draw off hydraulic fluid in tank.

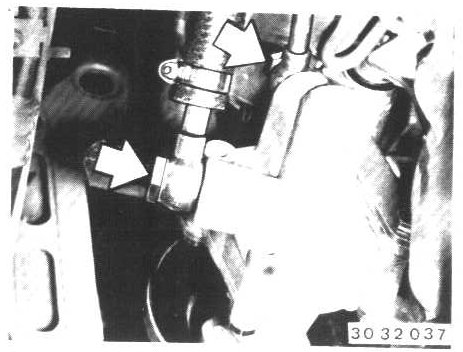

- Disconnect lines.

- Plug connections with dust caps.

Installation:
Replace seals.
Tightening torque M14 35 Nm, M16 40 Nm
Check for sufficient space between hoses and body-mounted parts.

Important! Never reuse drained oil.

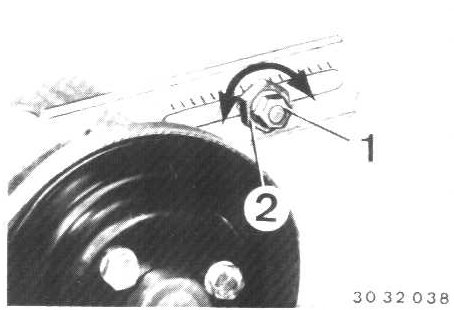

- Loosen nut (1) and release drive belt by turning toothed element (2).

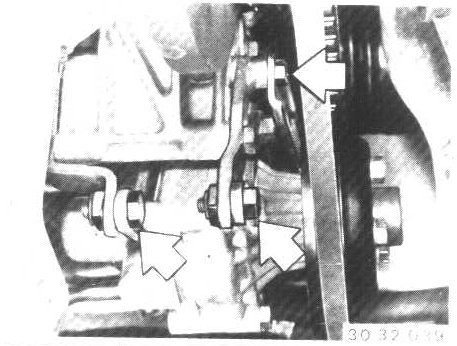

- Unscrew bolts and take off pump.

Installation:
Tighten drive belt before tightening bolts.

Tightening Drive Belt

- Tighten toothed element to torque of 8 to 8.5 Nm (5.8 to 6.1 ft. lbs.) and lock with nut.

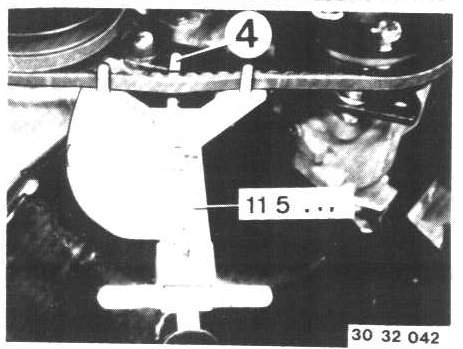

- Check or correct drive belt tightness with tester 11 5....

- Hook (4) rests on tip of tooth.

- Bleed power steering.
