Audible Warning Device Control Module: Locations

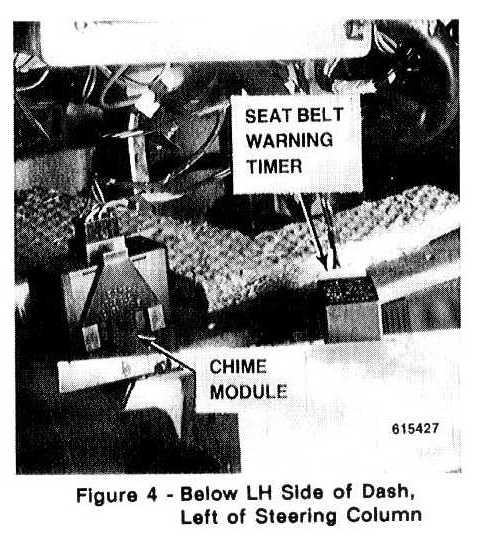

Component ID Chime Module
Component Location Mounted on LH dash hush panel
