Control Unit Pin Values

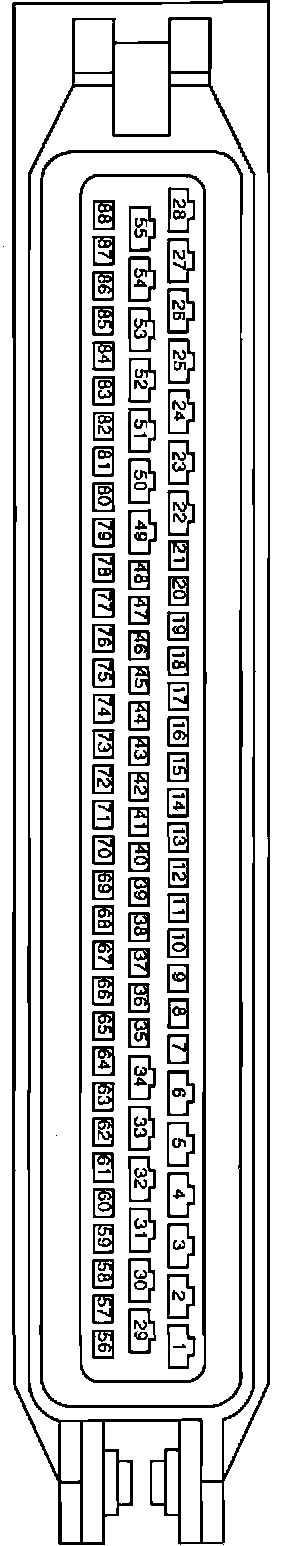

DME Connector View:

DME CONNECTOR VIEW

DME Terminal Info:

DME Terminal Info:

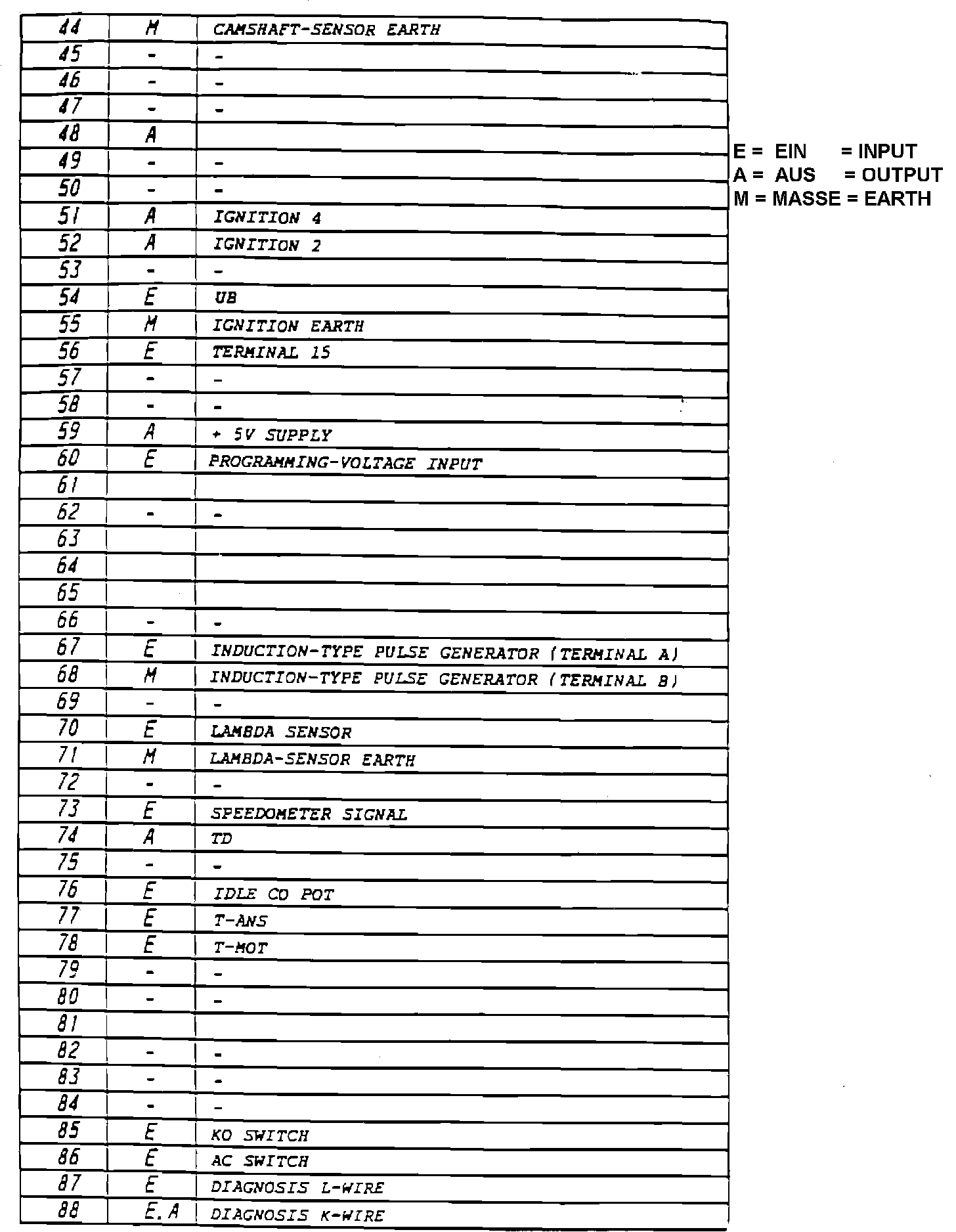

DME TERMINAL DESIGNATION
