Replacing Cable For Temperature Mixing Flap

Procedure:
- Disconnect battery ground lead.
- Remove left side underdash panel.
- Remove lower portion of center console.
- Open glove box.





- Disconnect pins (1) of both retaining straps.
- Remove radio opening mask or radio.





- Pull opening covers (1) or switches (2) out of control panel.
- Pull off plugs (3) on switches (2).





- Unscrew screws.
- Pull out control panel slightly.





- Unscrew screw (1).
- Take off trim panel (2).

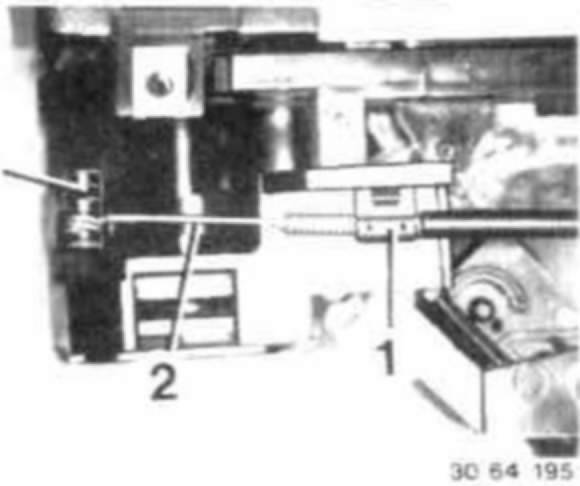

- Remove cable clamp (1).

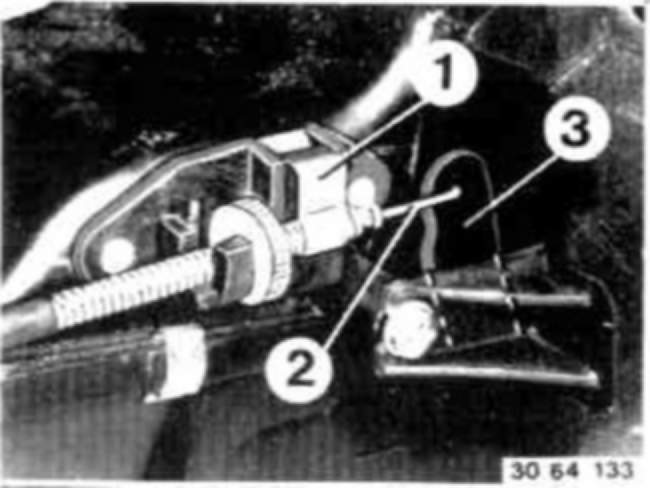

- Disconnect cable (2) from lever (3).





- Remove cable clamp (1).
- Disconnect cable (2) from lever (3) end, remove.

Installation Notes
- Set temperature selection wheel to (cold or warm) stop.

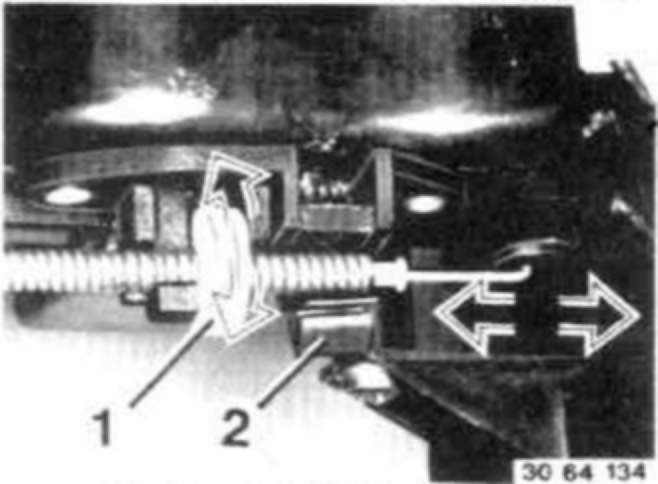

- Turn knurled nut (1) to also move temperature mixing flap to (cold or warm) stop.
- Secure cable with clamp (2).
