Air Door Actuator / Motor: Service and Repair

Replacing Fresh Flap Motor

Removal:
- Disconnect battery ground lead.
- Remove mask for radio opening or radio.





- Pull covers (1) or switches (2) out of control panel.
- Pull plugs (3) off of switches (2).





- Unscrew screws.
- Pull out the control panel slightly.

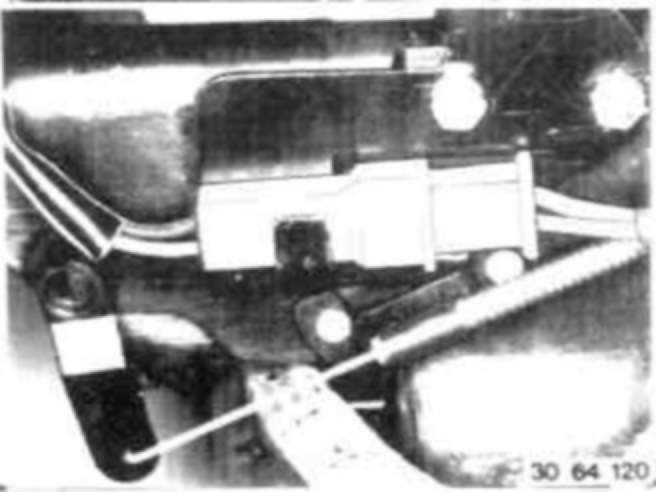

- Disconnect plug.

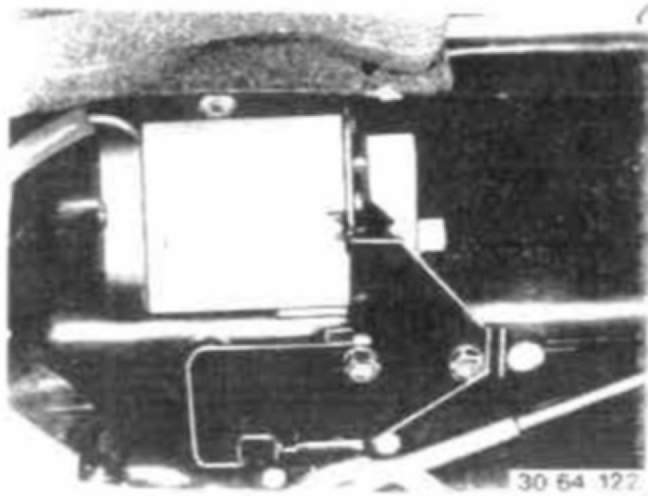

- Unscrew bolts and take off operating motor with holder.

Installation Note:
^ Engage holder in housing tab.

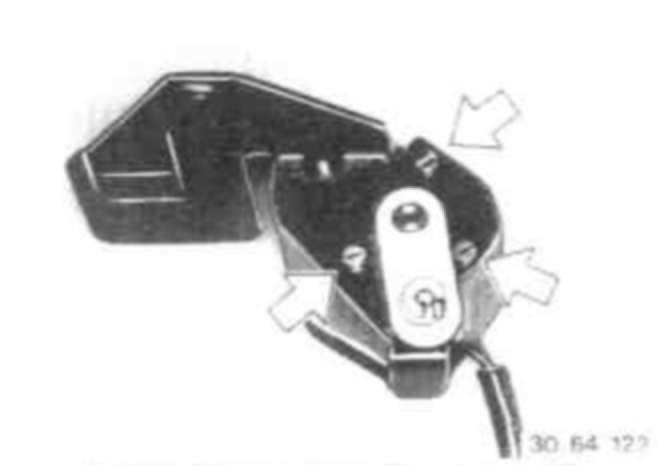

- Remove screws.
- Remove operating motor from holder.

Installation Notes:

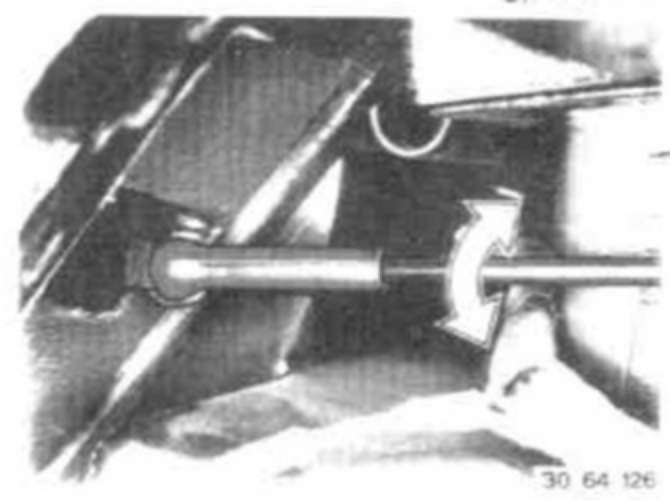

- The length of the operating rod must be adjusted in such a manner, that the fresh air flaps can be opened and closed completely by the operating motor.





- Adjust by disconnecting the operating rod from the operating motor and turning the rod in the ball head.
