System Diagram
System Diagram

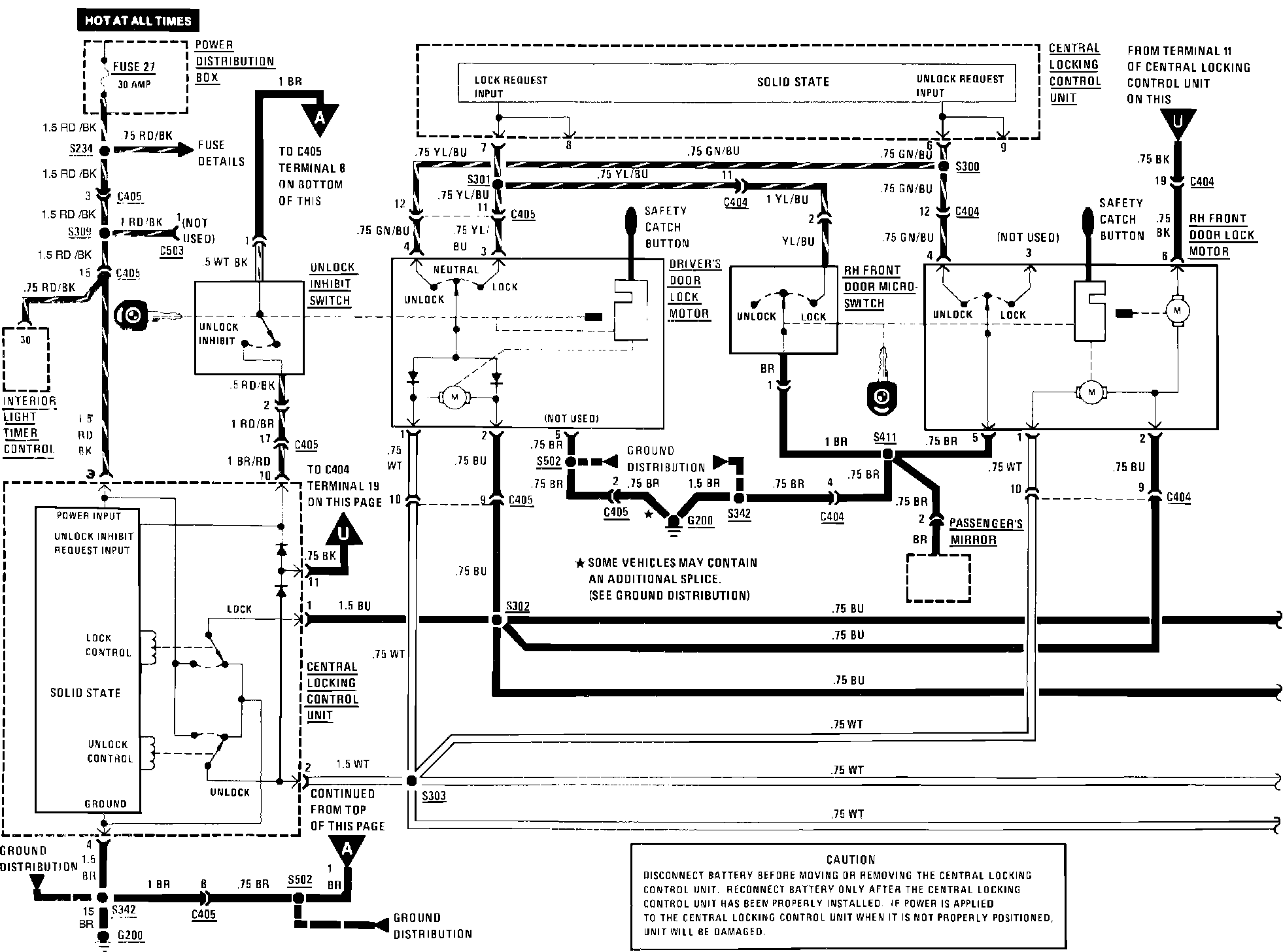

Power Door Locks (Central Locking):
Power Door Locks (Central Locking):
