Home >> BMW >> 1992 >> 318i Convertible (E30) L4-1796cc 1.8L DOHC (M42) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Flashlight

Flashlight

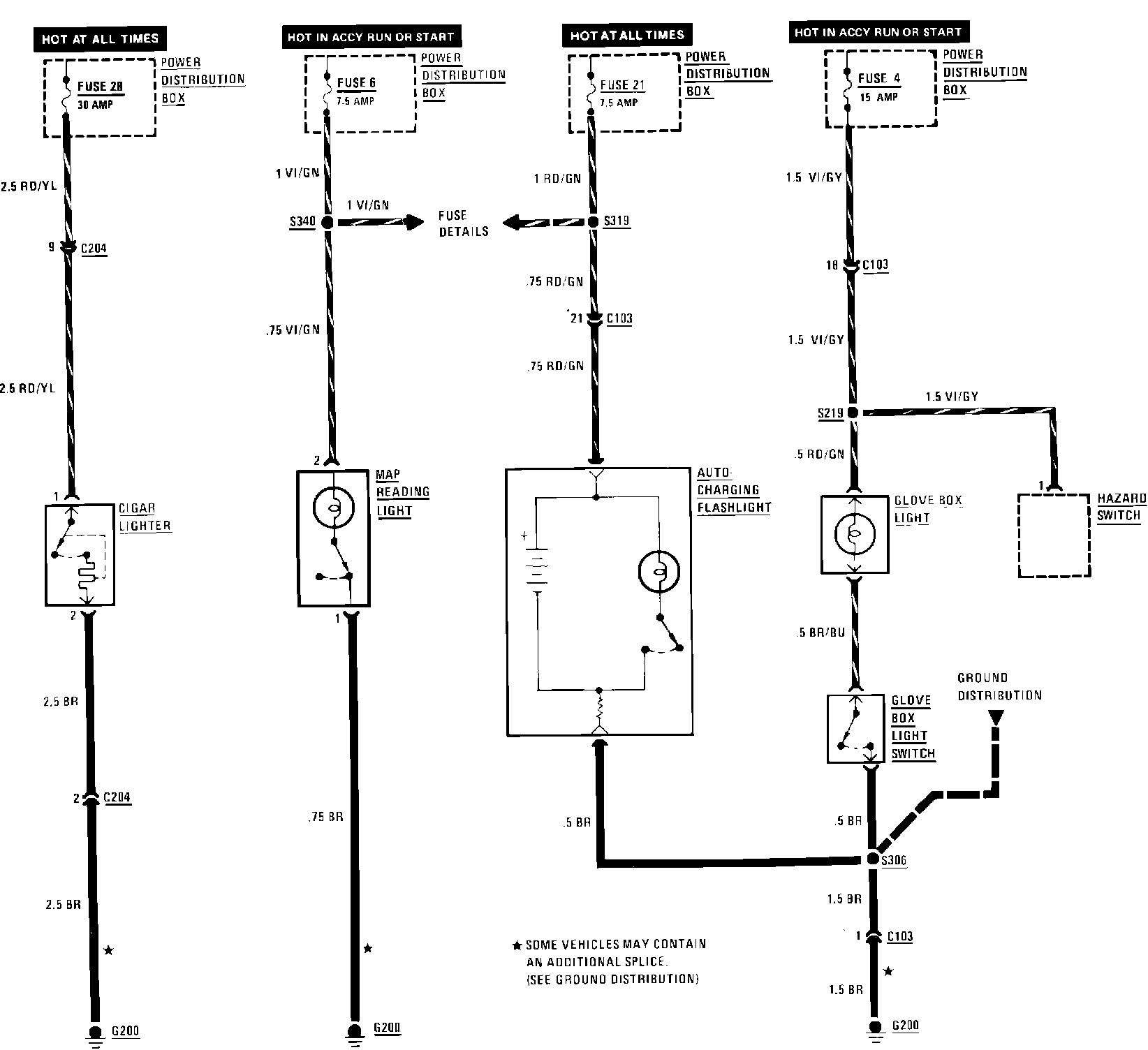

Body Electrical: Cigar Lighter, Glove Box Lamp, Auto-Charging Flashlight And Map Reading Lamp:
