Home >> BMW >> 1992 >> 318i Convertible (E30) L4-1796cc 1.8L DOHC (M42) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster/Check Control (K/cc) >> Service Interval Indicator

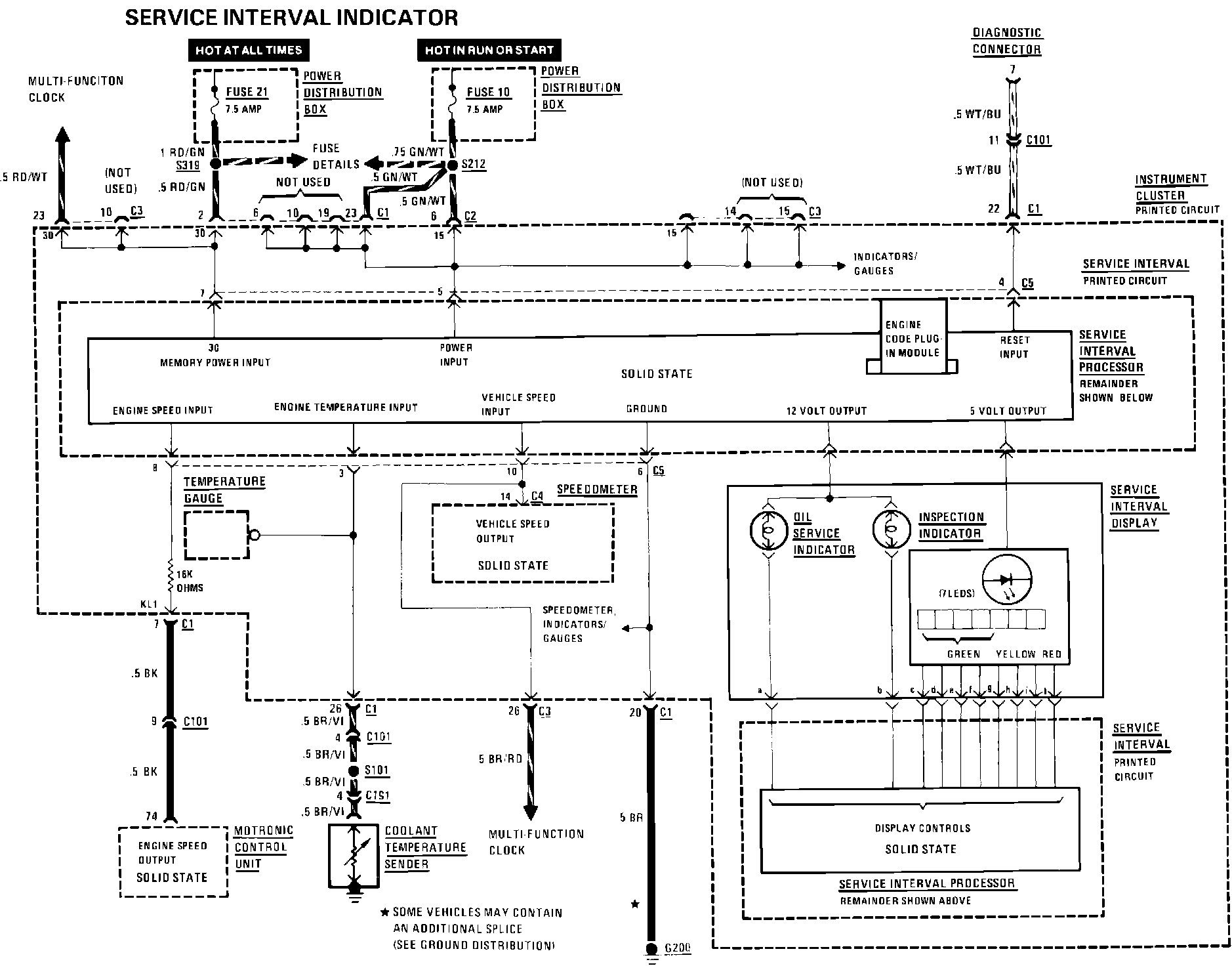

Service Interval Indicator

Instrument Panel: Service Interval Indicator:
