Vacuum Brake Booster Check Valve: Service and Repair

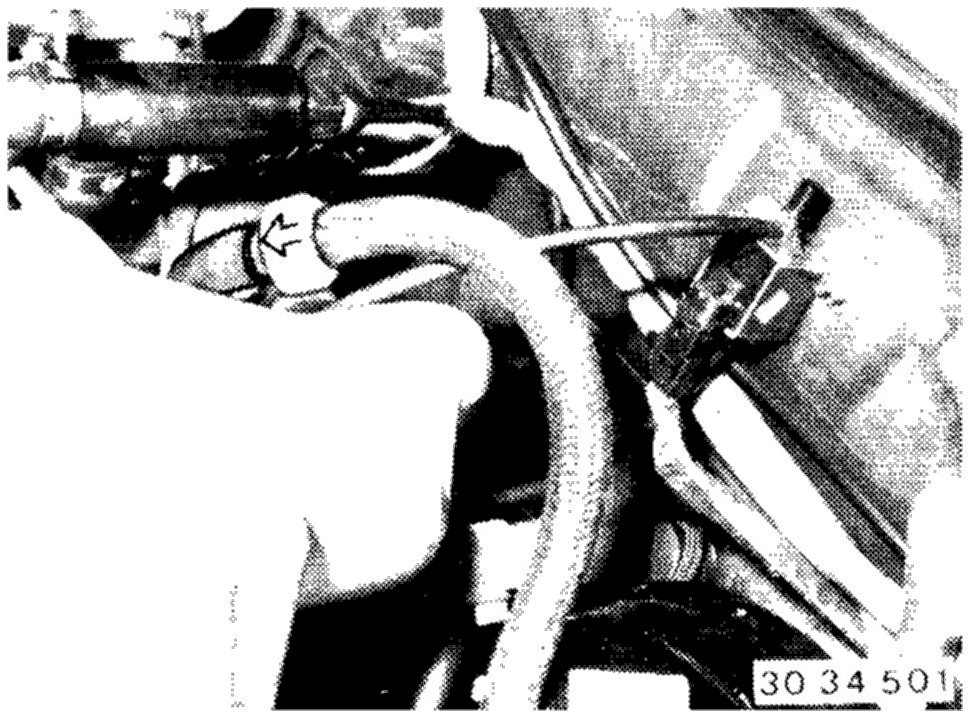

- Disconnect vacuum hoses on check valve (1).

Installation note:
- Replace clamp if necessary.

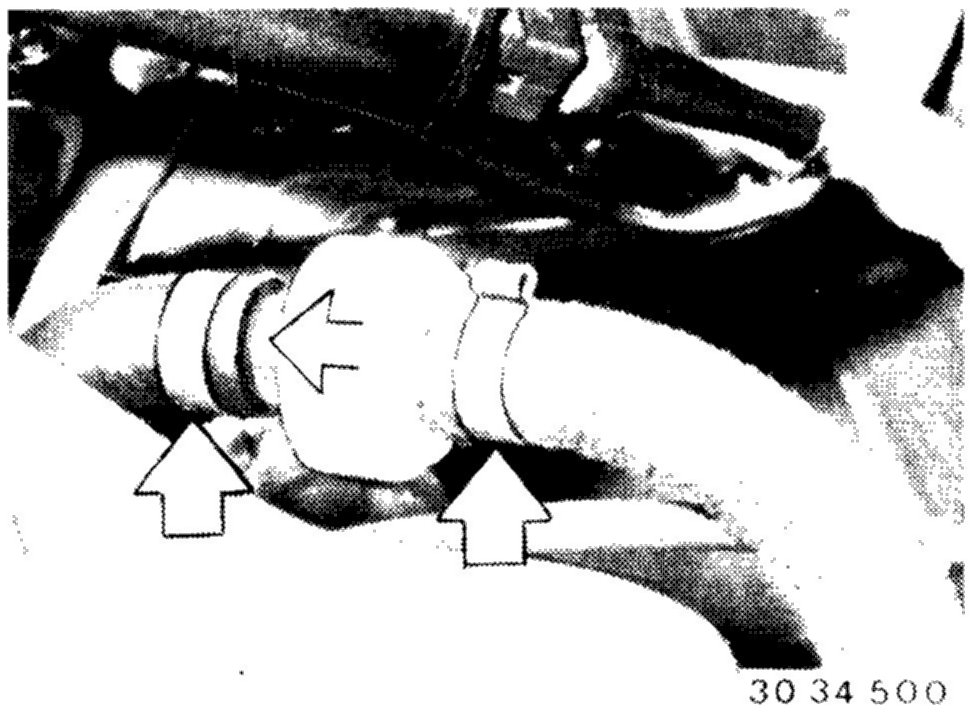

- Loosen clamps and take off check valve.

Installation note:
- Arrow or black side faces intake manifold.

- Replace clamp if necessary.
- Reverse procedure to install.
