Parking Brake Lever: Service and Repair

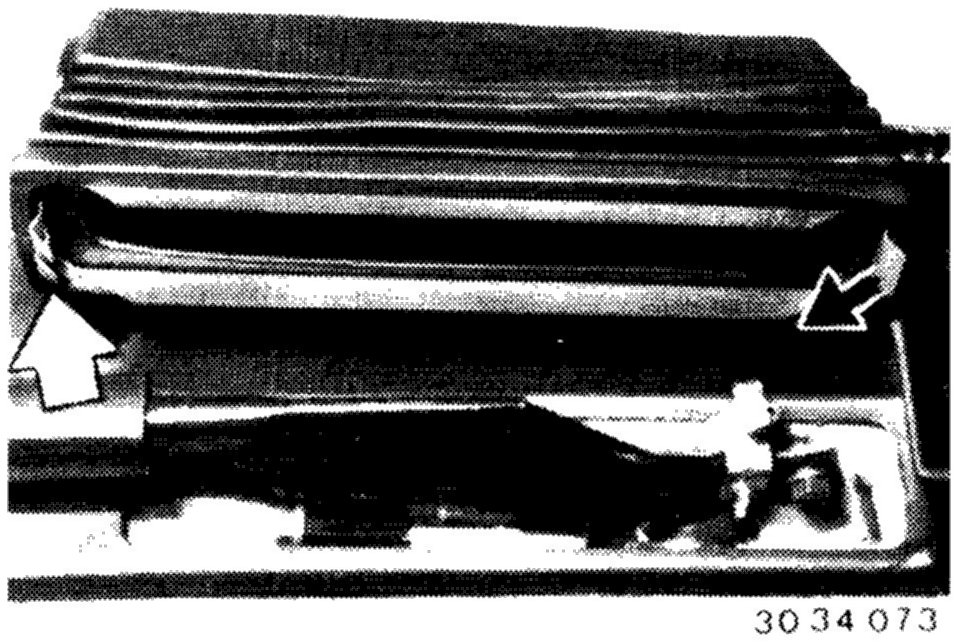

- Take off rubber cap by pulling up clamp at front and lifting out at rear.
- Lift out rear ashtray.

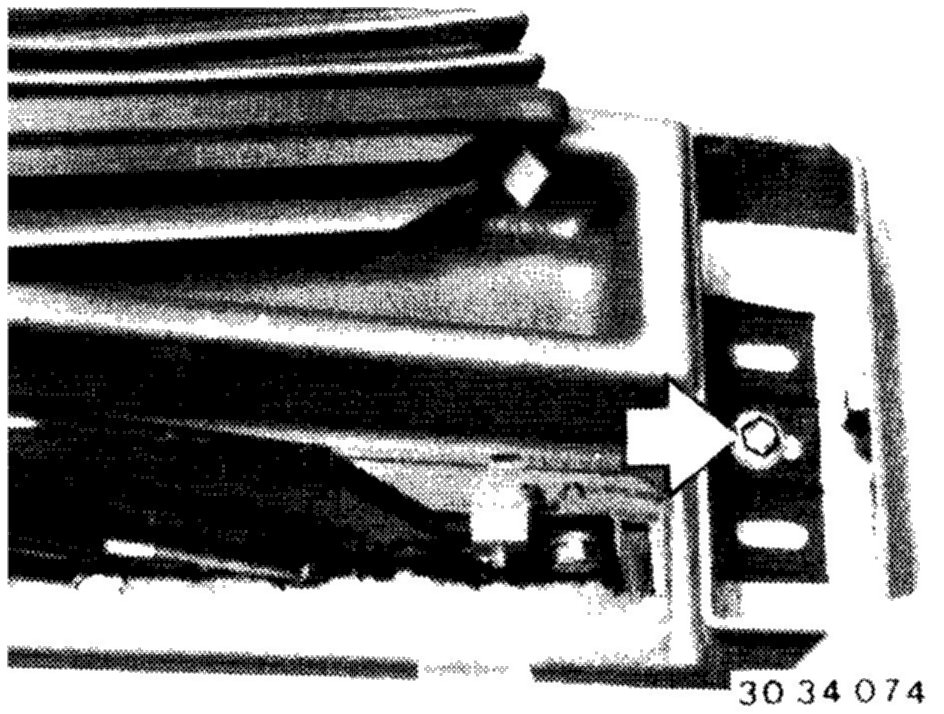

- Unscrew bolt.
- Disconnect console by pushing back and remove.

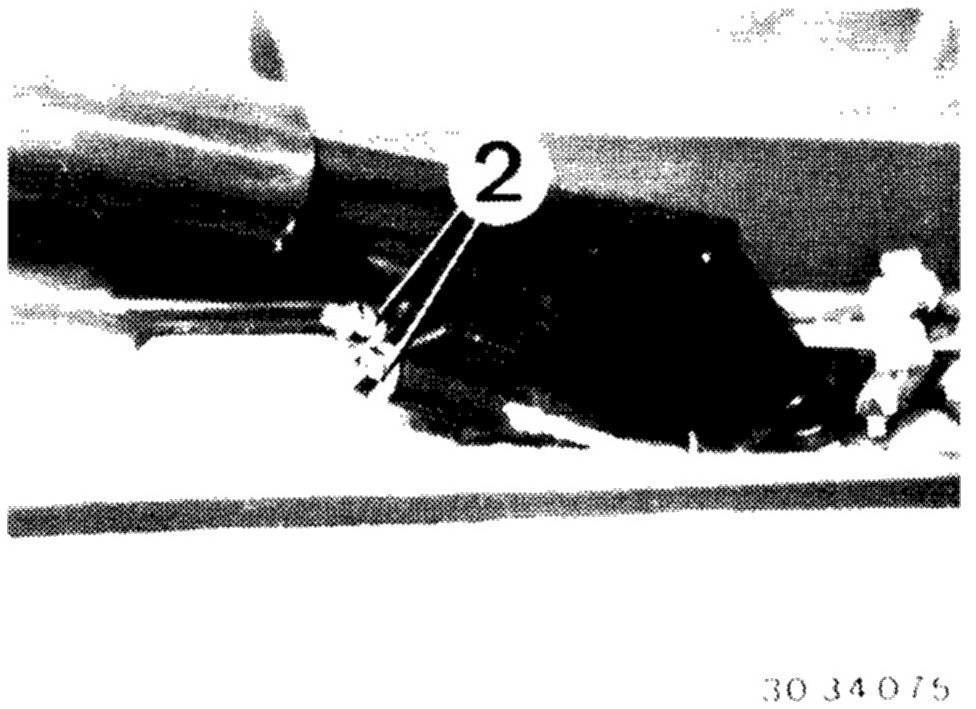

- Unscrew nuts (2) on parking brake cables.

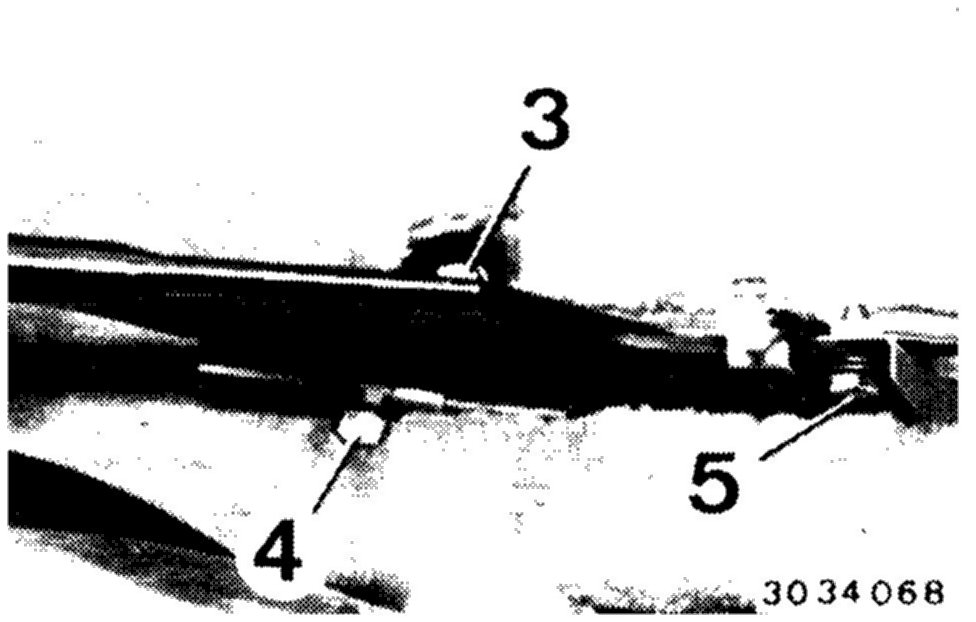

- Unscrew bolts (3...5).
- Remove parking brake lever.
- Reverse procedure to install.
