Parking Brake Cable: Service and Repair

- Remove and install brake shoes.



- Take rubber cap off of parking brake lever by pulling up clamp at front and lifting out at rear.

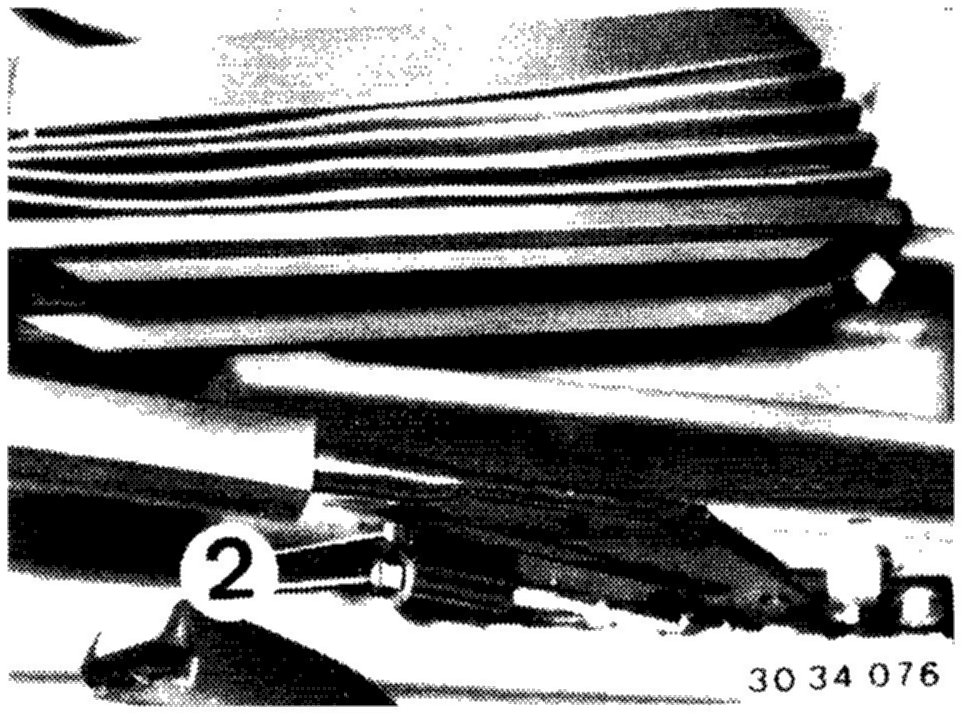

- Unscrew nuts (2) on parking brake cable.

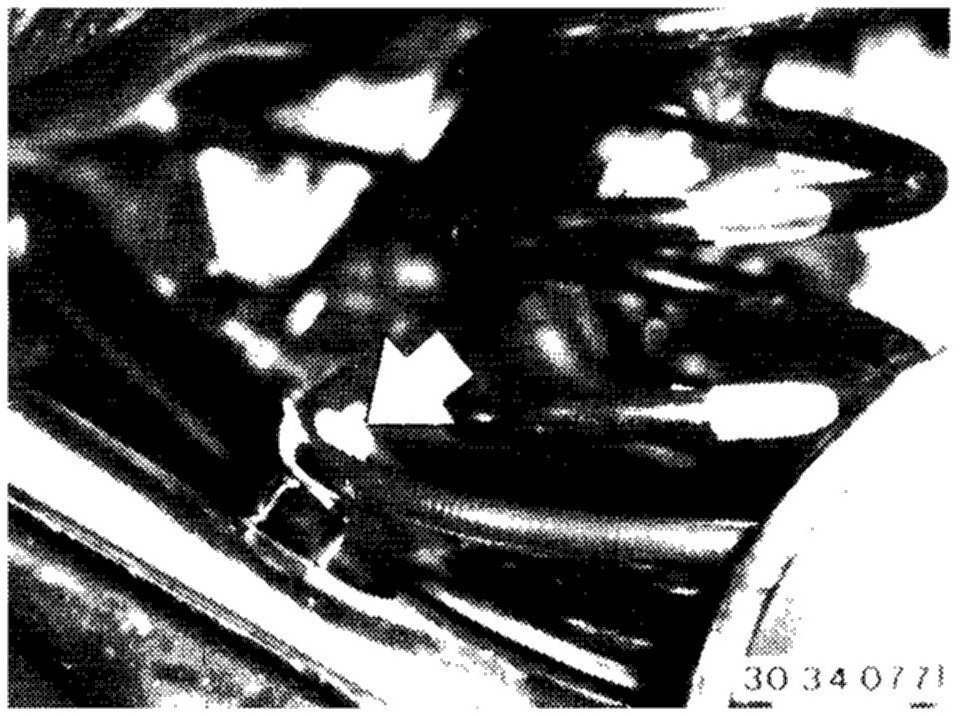

- Disconnect parking brake cable on semi-trailing arm.

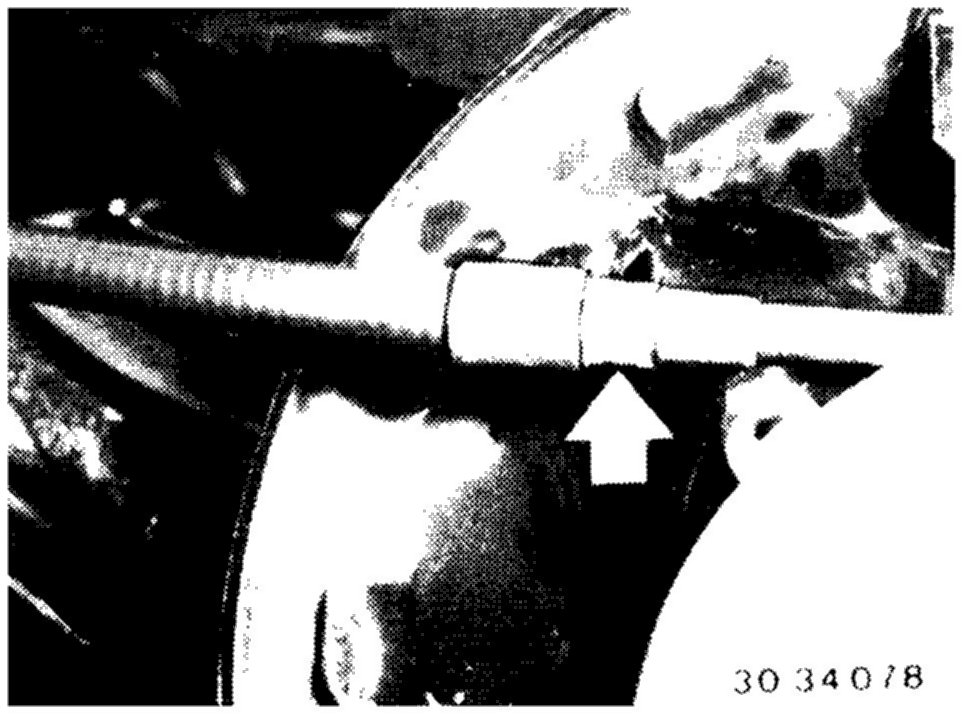

- Compress locking clamp.



- Disconnect parking brake cable on brake backplate and pull out.

Installation note:
- Make sure clamp fits correctly.

- Reverse procedure to install.
