Removing and Installing

- Draw off brake fluid in tank with a syringe used exclusively with brake fluids.
- Pull off plug.

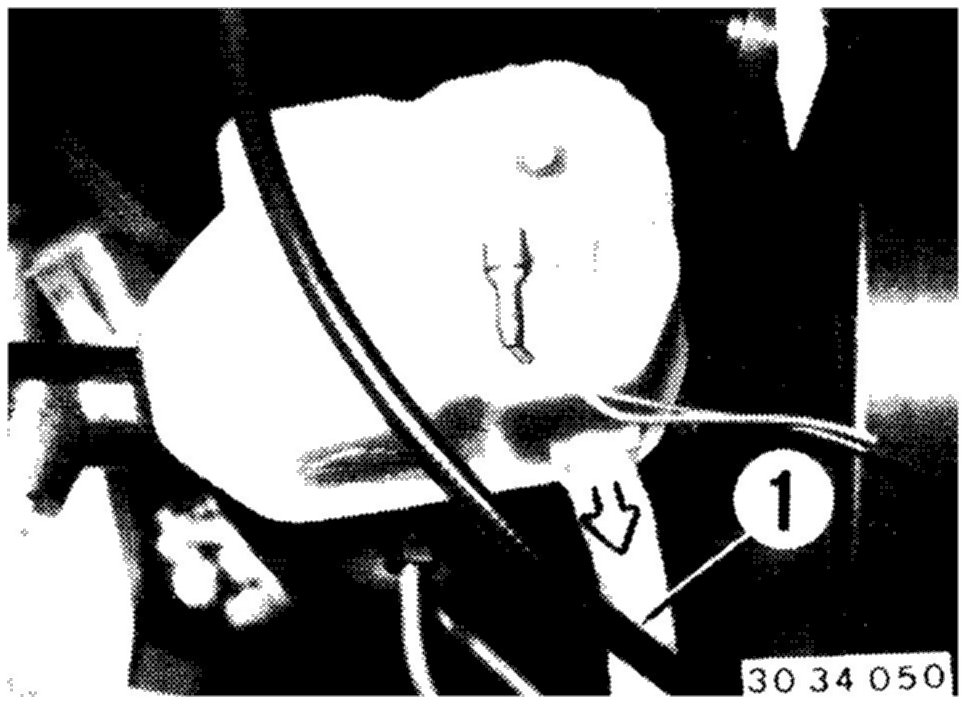

- Pull of clutch hydraulic hose (1).

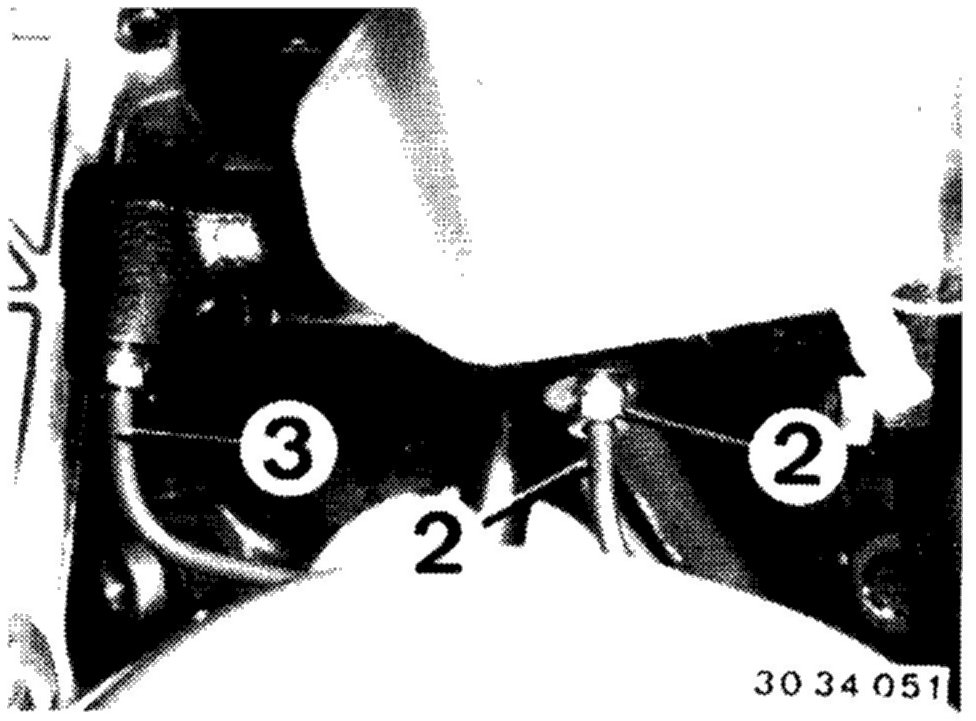

- Disconnect brake lines (2 and 3).

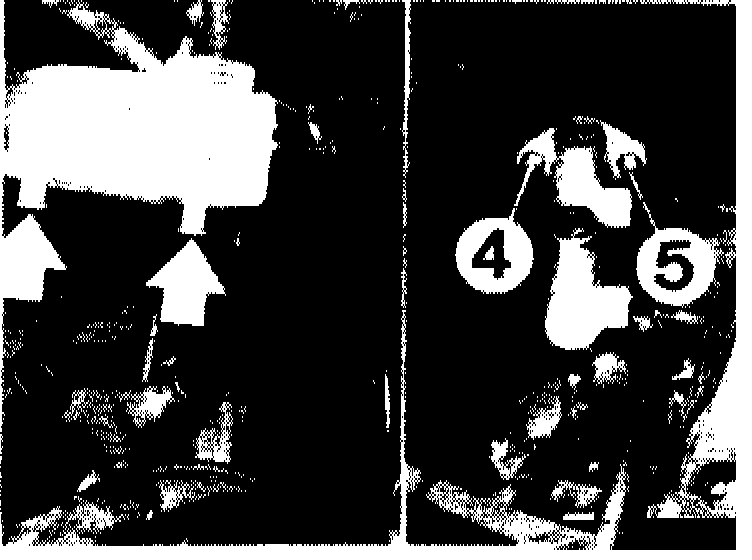

- Pull off tank.
- Unscrew mounting bolts (4 and 5).

Installation note:
- Tightening torque: 25-29 Nm (18-21 ft lbs).
- Check rubber seal and connections.

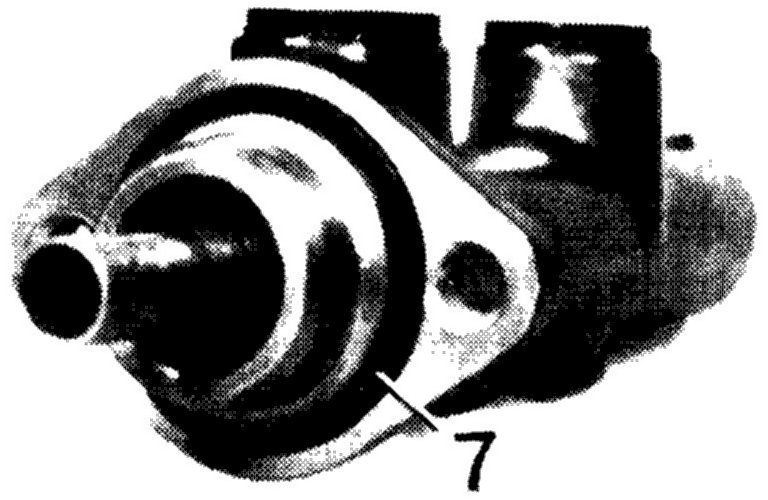

- Check rubber ring (7).

- If sealing is not perfect, the building up of vacuum will be impaired.
- Reverse procedure to install.

NOTE: For additional information see Notes, Warnings, and Hints. Fundamentals and Basics
