Checking Rear Disks For Runout and Thickness Variation

- If necessary, remove brake caliper. Service and Repair
- Mount brake disc with two bolts.

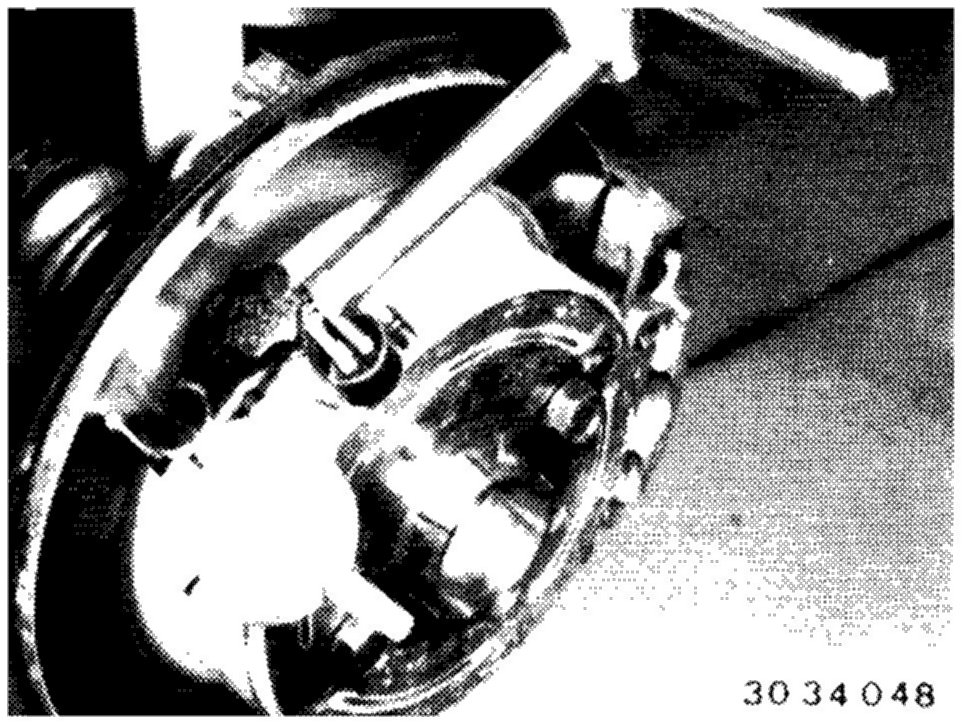

- Mount dial gauge holder and check lateral runout of brake disc with dial gauge.
- Reverse procedure to install.

Disc removed:
max. runout = 0.05 mm (0.0020 in).

Disc installed:
max. runout = 0.2 mm (0.008 in).
