Checking Front Disks For Runout and Thickness Variation

- Requirement: wheel bearings okay.

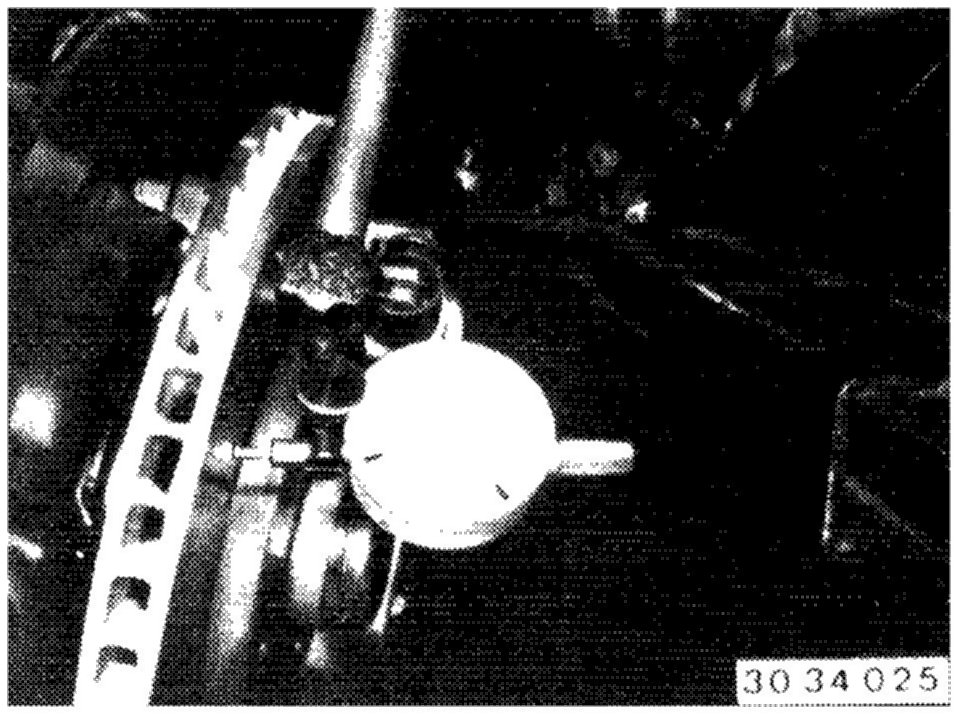

- Mount dial gauge holder and check lateral runout of brake disc with dial gauge.

Installation note:
- Mount brake disc with two M 12 x 1.5 bolts.

- Reverse procedure to install.

Disc removed:
max. runout = 0.05 mm (0.0020 in).

Disc installed:
max. runout = 0.2 mm (0.008 in).
