Front Brakes

- Remove front wheels.

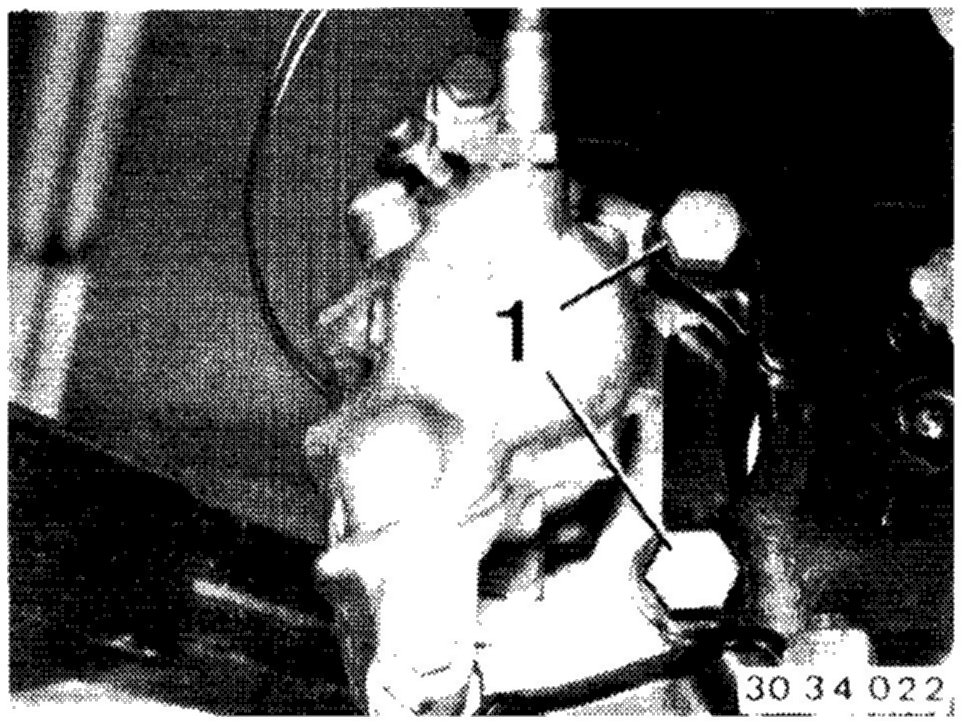

- Unscrew brake caliper mounting bolts (1).

Installation note:
- Tightening torque: 110 Nm.

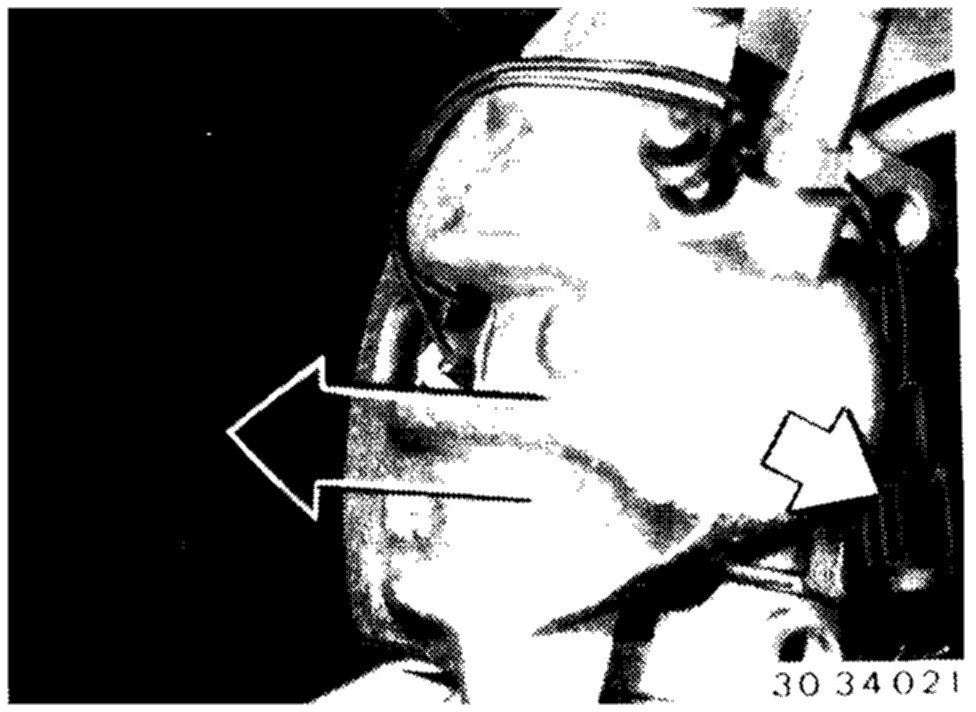

- Unplug brake pad wear indicator on left side.
- Pull off brake caliper toward rear and suspend with a piece of wire.

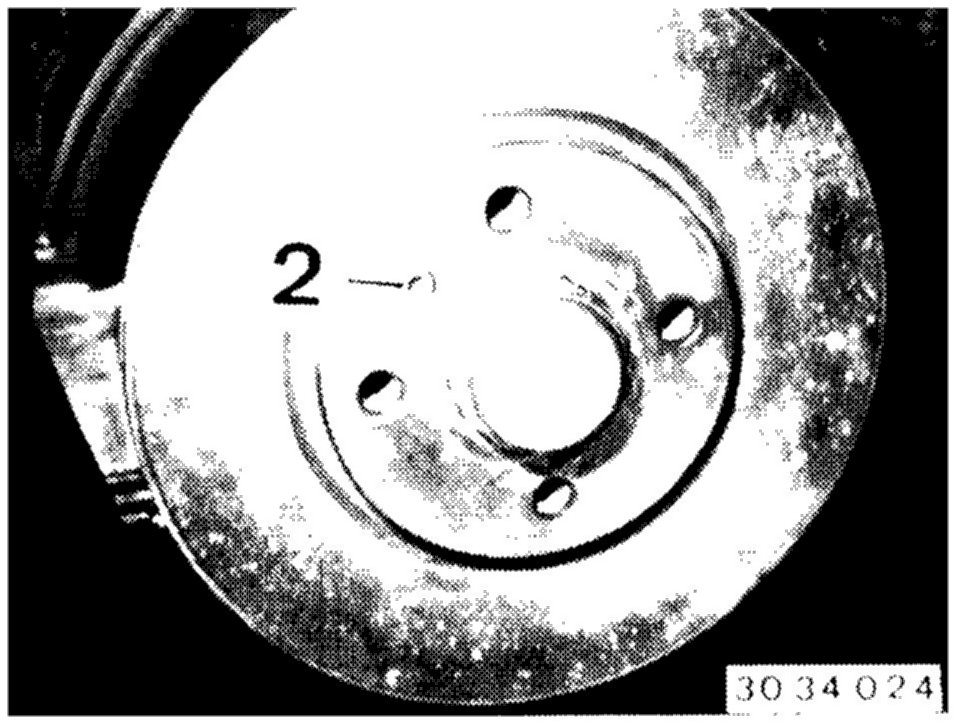

- Unscrew bolt (2).
- Take off brake disc.
- Reverse procedure to install.

NOTE: For additional information see Installation Notes. Fundamentals and Basics
