Fuel Door Release Actuator: Locations

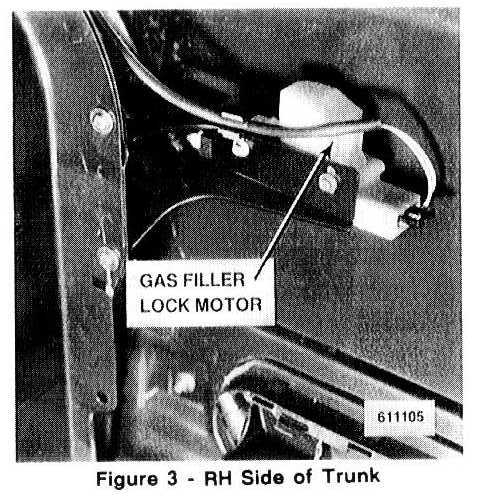

Component ID Gas Filler Lock Motor
Component Location RH side of trunk, behind RH wheel well
