Control Panel, Removing/Installing

REMOVING AND INSTALLING OR REPLACING ON-BOARD COMPUTER

Note: E30 shown, E28 proceedure is similar.

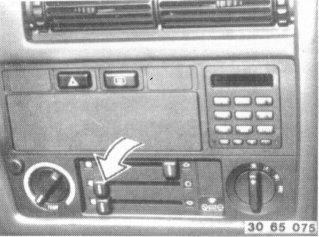

Lift out radio mask or remove radio




Open glove box

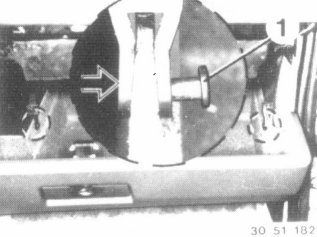

Pull Out pins (1) of both retaining straps

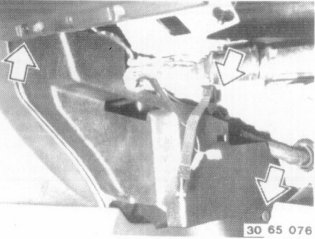

Unscrew screws and pull down cover

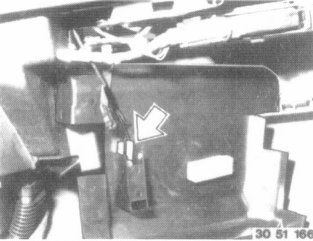

Pull off wire plug and remove cover.

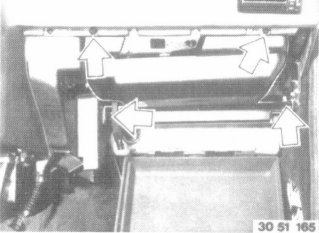

Unscrew screws and remove cover.




Unscrew screws and take out on-board computer.




Pull Out slider (1) and pull off plug (2).




Replacing Coding Plug:

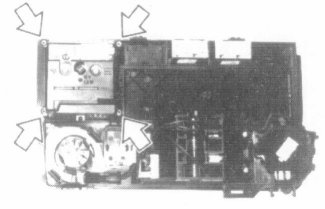

Compress retainers and pull out coding plug.
