Replacing Dust Cover For Shift Lever
Replacing Dust Cover For Shift Lever
-

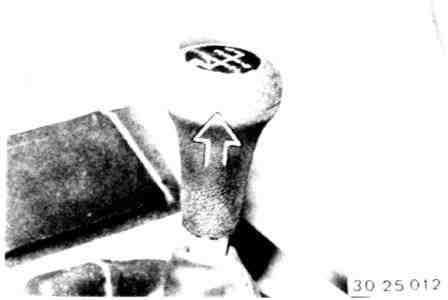

Pull off shift lever knob.
Installation Note:
Shift lever knob must grab in the turning lock.
Check position of shift pattern.
-

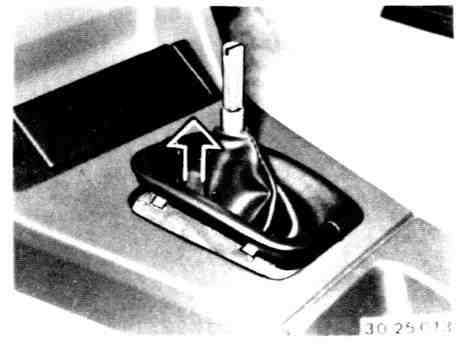

Lift Out dust cover.
