With Steel Shift Lever Console

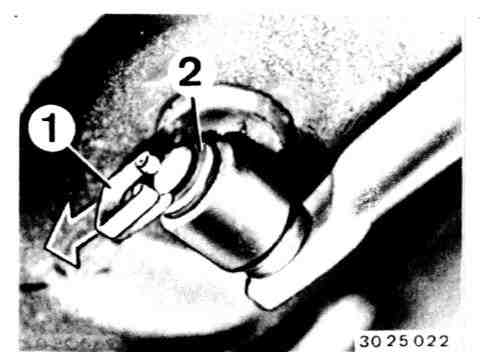

- Remove retainer (1).
- Take off washer (2).
- Pull out selector rod.

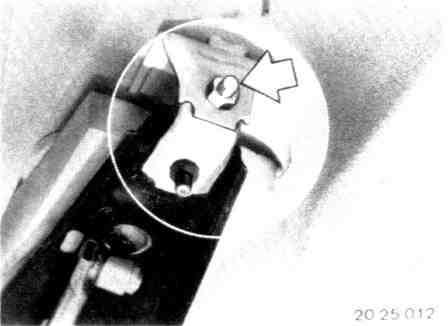

- Unscrew mounting bracket.

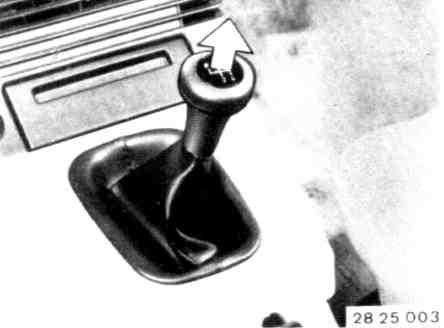

- Pull off shift lever knob.

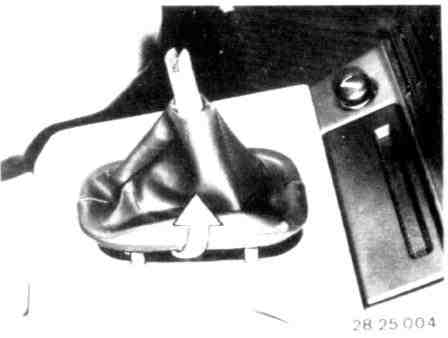

- Remove dust cover.





- Remove felt pad.
- Pull Out rubber sleeve between tunnel and shift console.

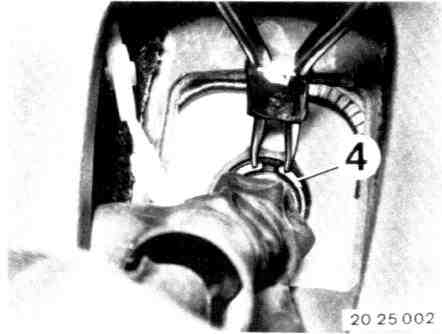

- Lift out circlip (4).
- Remove shift lever.

Installation Note:
Lubricate spherical plates with Molykote Longterm 2.
