Home >> BMW >> 1991 >> 318i Convertible (E30) L4-1796cc 1.8L DOHC (M42) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuse 8, 12 & 19

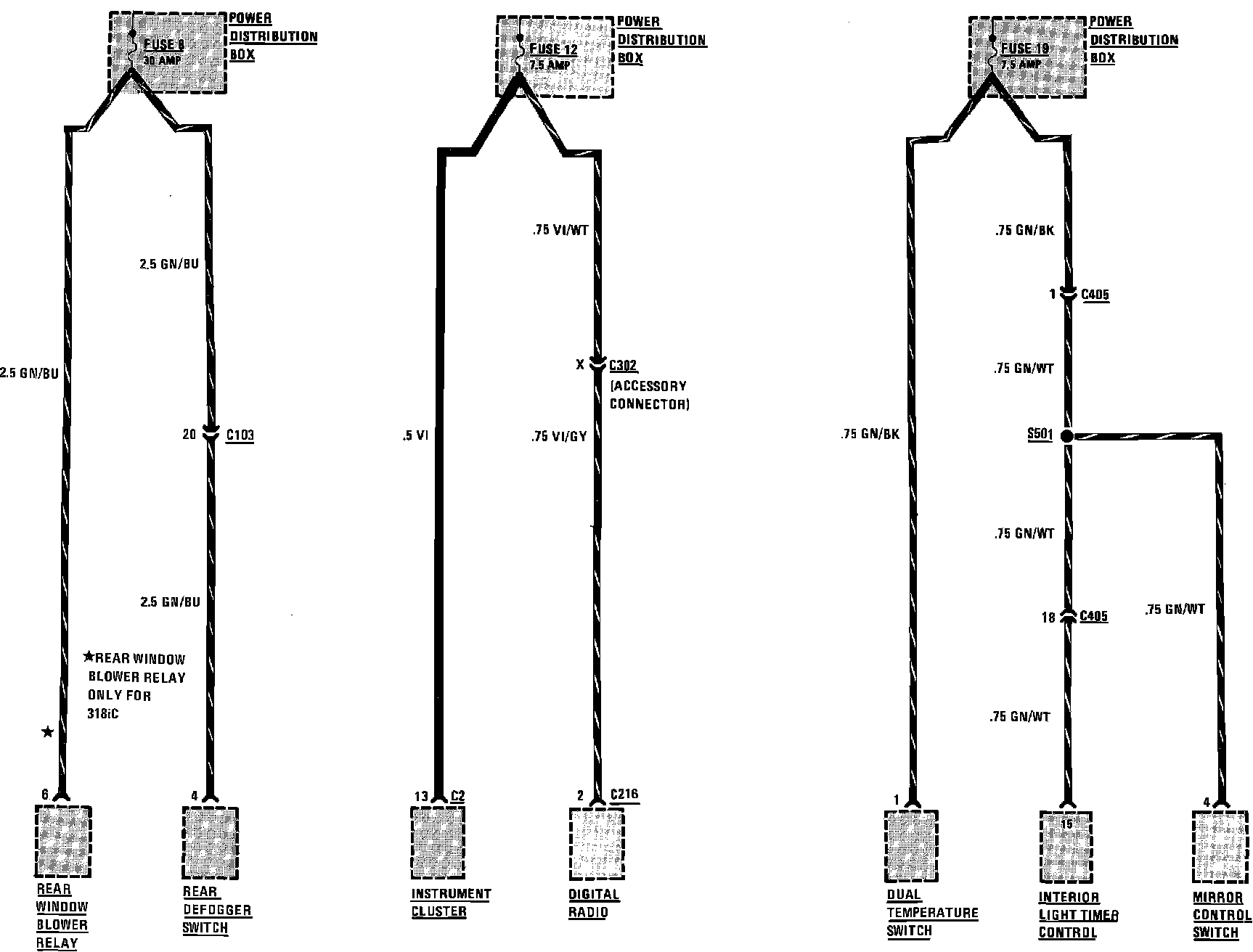

Fuse 8, 12 & 19

Fuses 8, 12 & 19:
