Rear Speed Sensor

REMOVE
- Turn ignition "Off".
- Remove rear wheel.
- Unscrew socket head bolt.

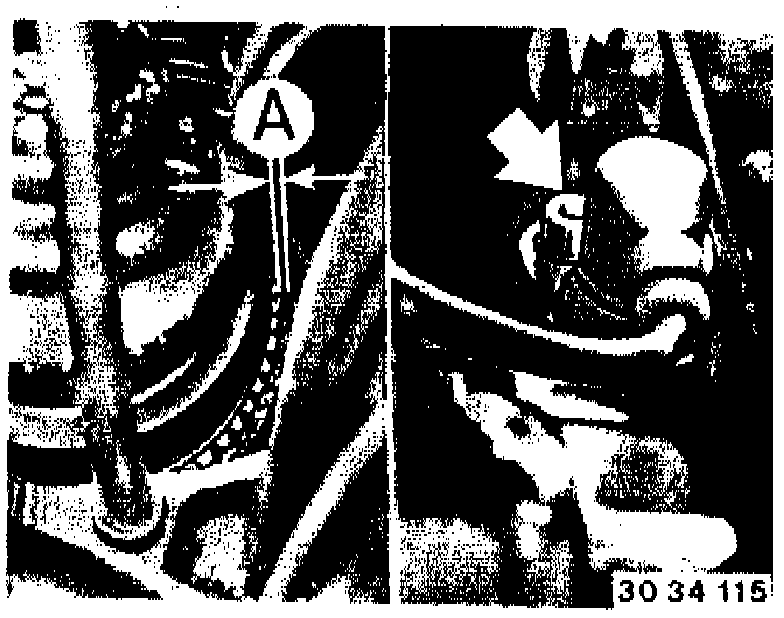

Installation Note: Distance between pulse sensor and pulse wheel (A) is given by design and cannot be adjusted. However, a visual inspection for dirt or damage on the pulse wheel is necessary.

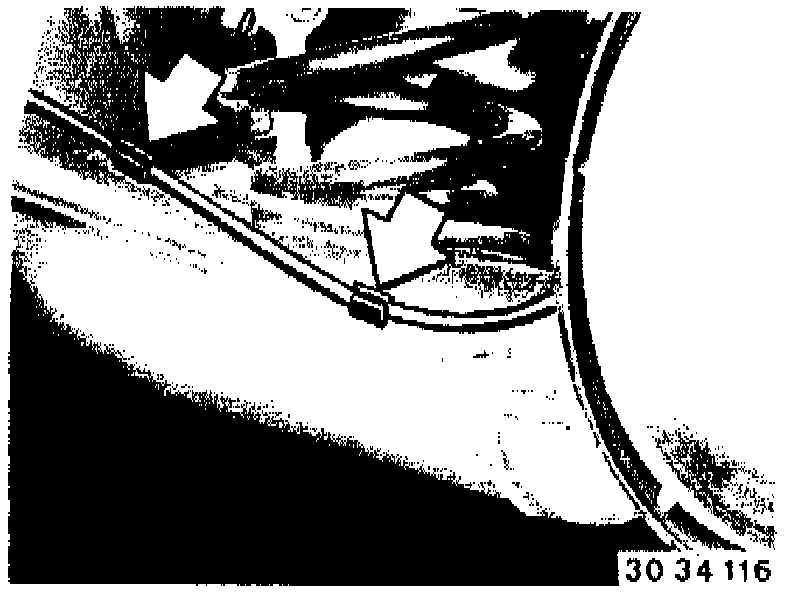

- Take wires out of clips.





- Remove rear seat cushion.
- Disconnect sensor connector.

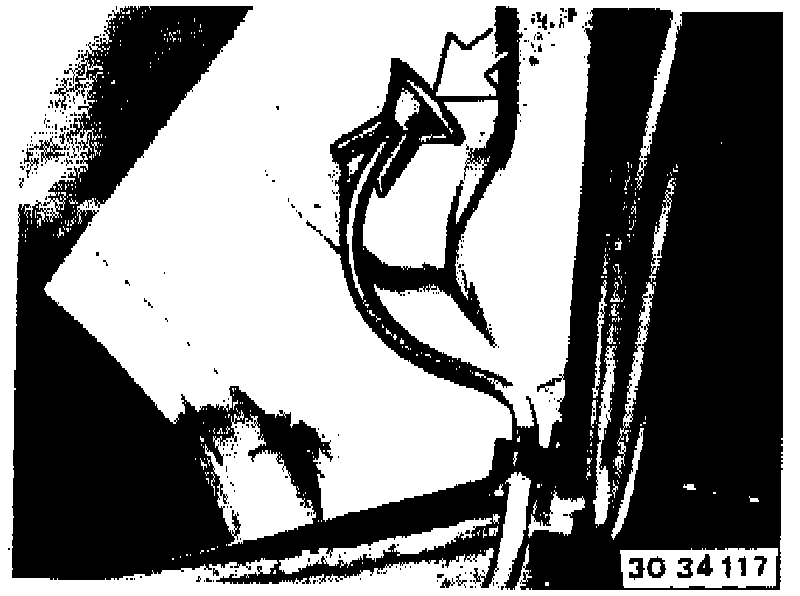

- Pull out rubber grommet and wires.

CAUTION: Don't damage rubber grommet.

- Pull out pulse sensor.

INSTALL
- Install in reverse order. Pay attention to installation notes.
- Lubricate pulse sensor and housing with Molykote Long-term 2 before installing.
- Check function of Antilock Brake System (ABS) for proper operation.
