Electronic Brake Control Module: Service and Repair

REMOVE

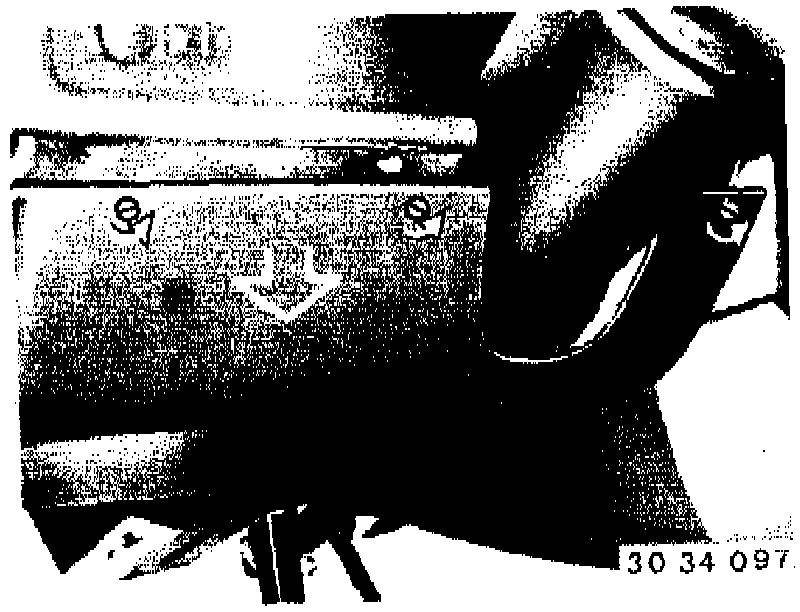

- Remove instrument panel trim at bottom left.

CAUTION: Always turn "Off" ignition before removing or installing control unit.

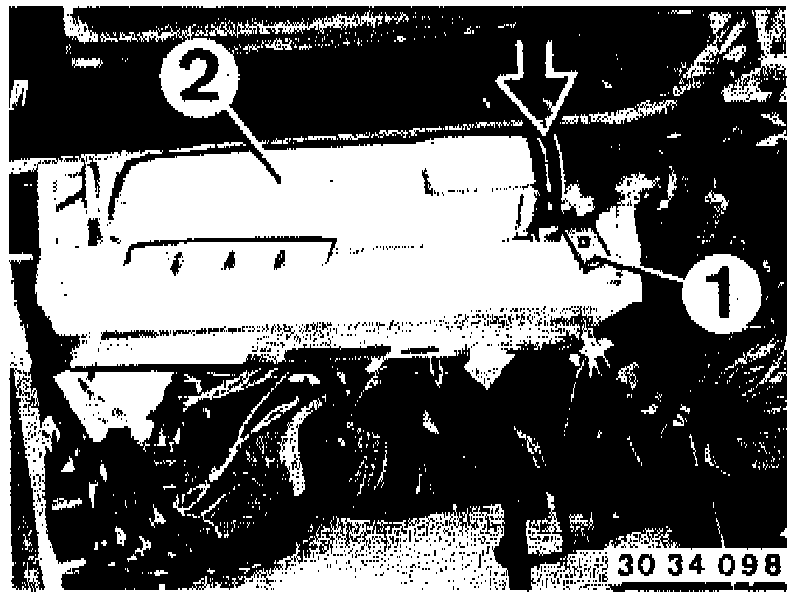

- Push back clamp (1) and pull out multiple pin plug (2) to the right, and then disengage it to the left.

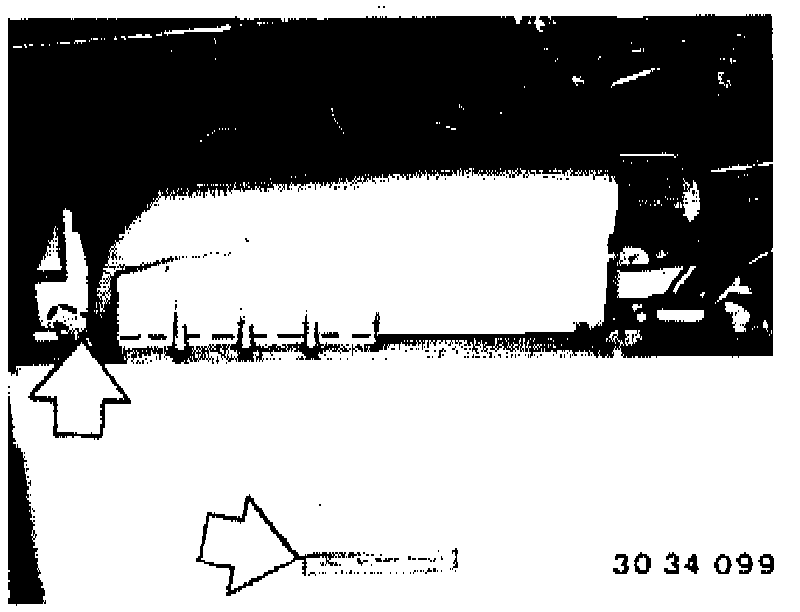

- Unscrew control unit on body.





Installation Note: Check for correct connection when replacing control unit. The multiple pin plug has a tab on the left side, for which the control unit must have an opening.

INSTALL
- Install in reverse order. Pay attention to installation notes.

CAUTION: Only use a control unit with the correct code number.

- First engage left side of plug and then press right side into clamp.
- Check the Antilock Brake System (ABS) for proper operation.
