2.1 - Connecting Simulator

2.1.1 Connecting simulator to '3', '5', '6' and '7' Series Cars




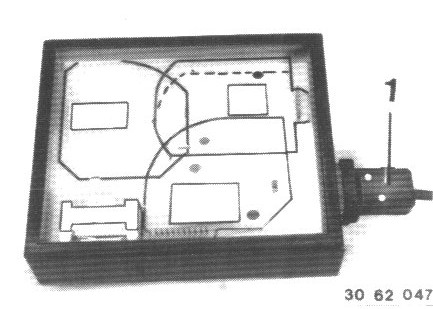

Connect plug (1) and '3' series wire harness on adapter for instruments.

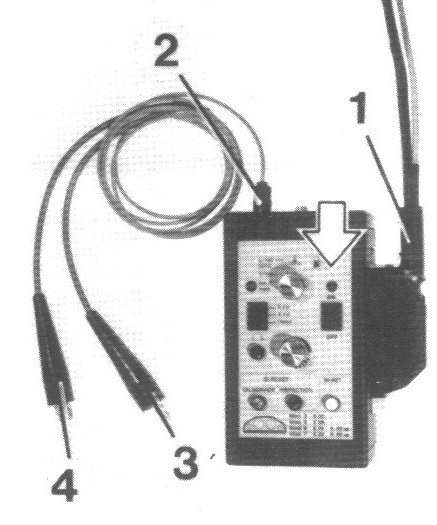

Connect lead (1) and power supply lead (2) on simulator.

Connect red terminal (3) on B+ and black terminal (4) on B- of a 12 V battery.

Turn on simulator with twitch (1).

The red control lamp will not come on with a battery voltage below 11ev; the simulator is not ready for use.
