Removing Timing Case and Oil Pump

Unscrew all bolts.
Lift off timing case.

Installation:

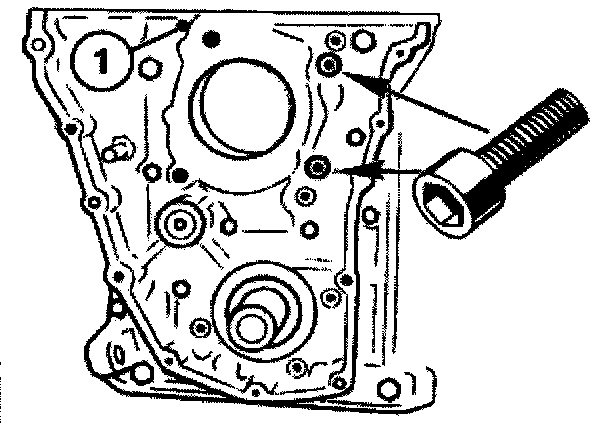

Check location of socket head bolts.
Upper left bore (1) is not used.
Tighten all bolts uniformly.
Tightening torque:
M6 screw = 10 Nm







Installation:

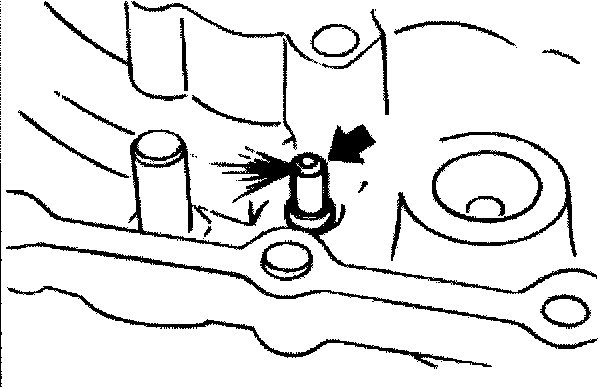

Chain lubrication spray jet faces bolt.







Installation:
Replace seal.

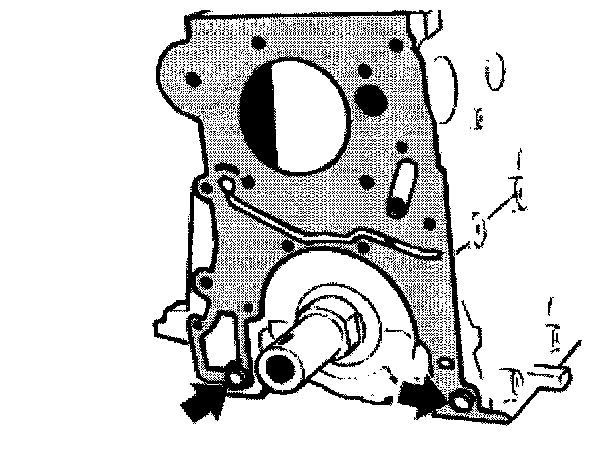

Check dowel sleeves.
