FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
1991
>>
318i Convertible (E30) L4-1796cc 1.8L DOHC (M42)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
W/Sound System
W/Sound System

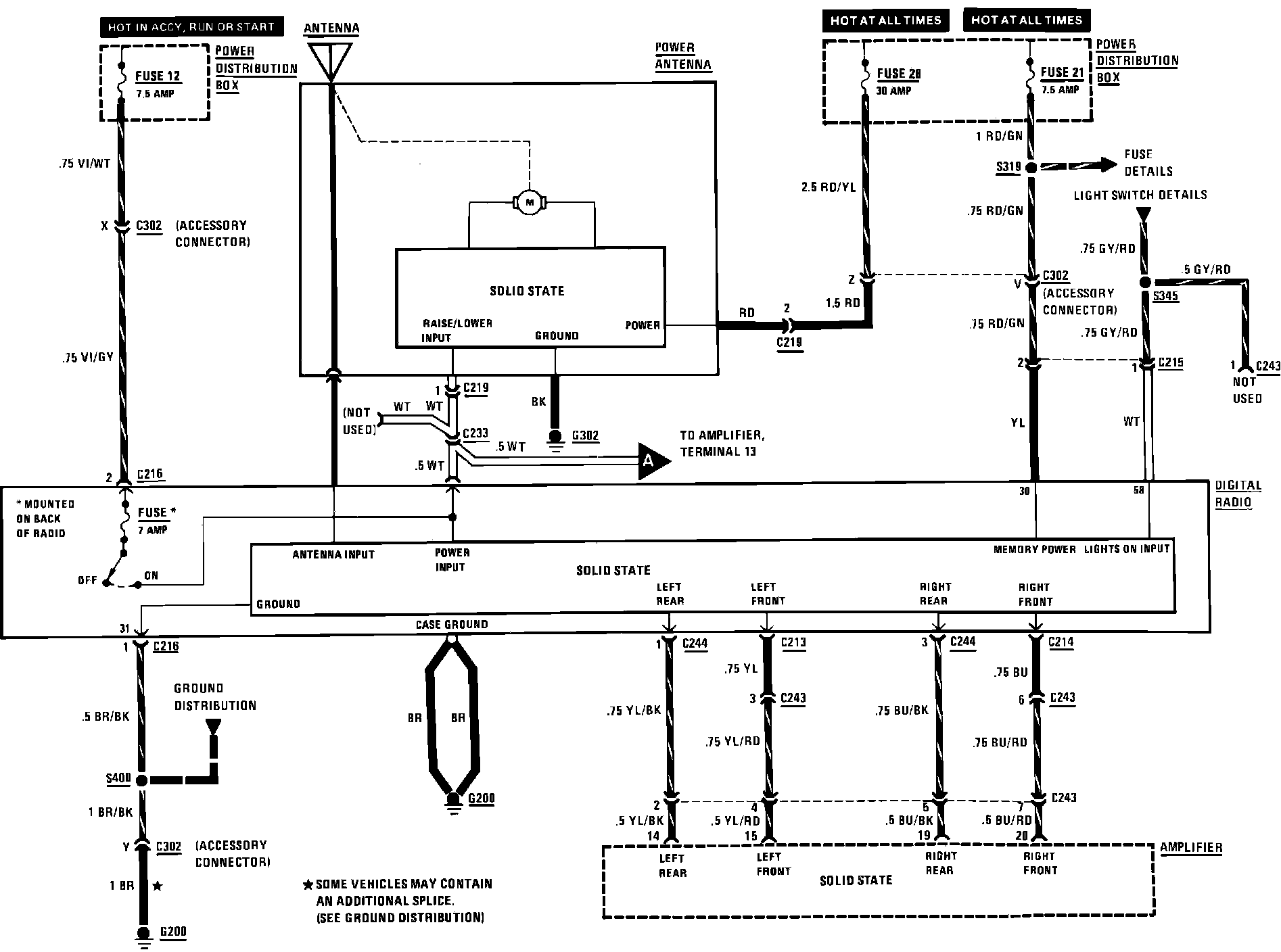

Power Antenna & Radio: With Amplifier:

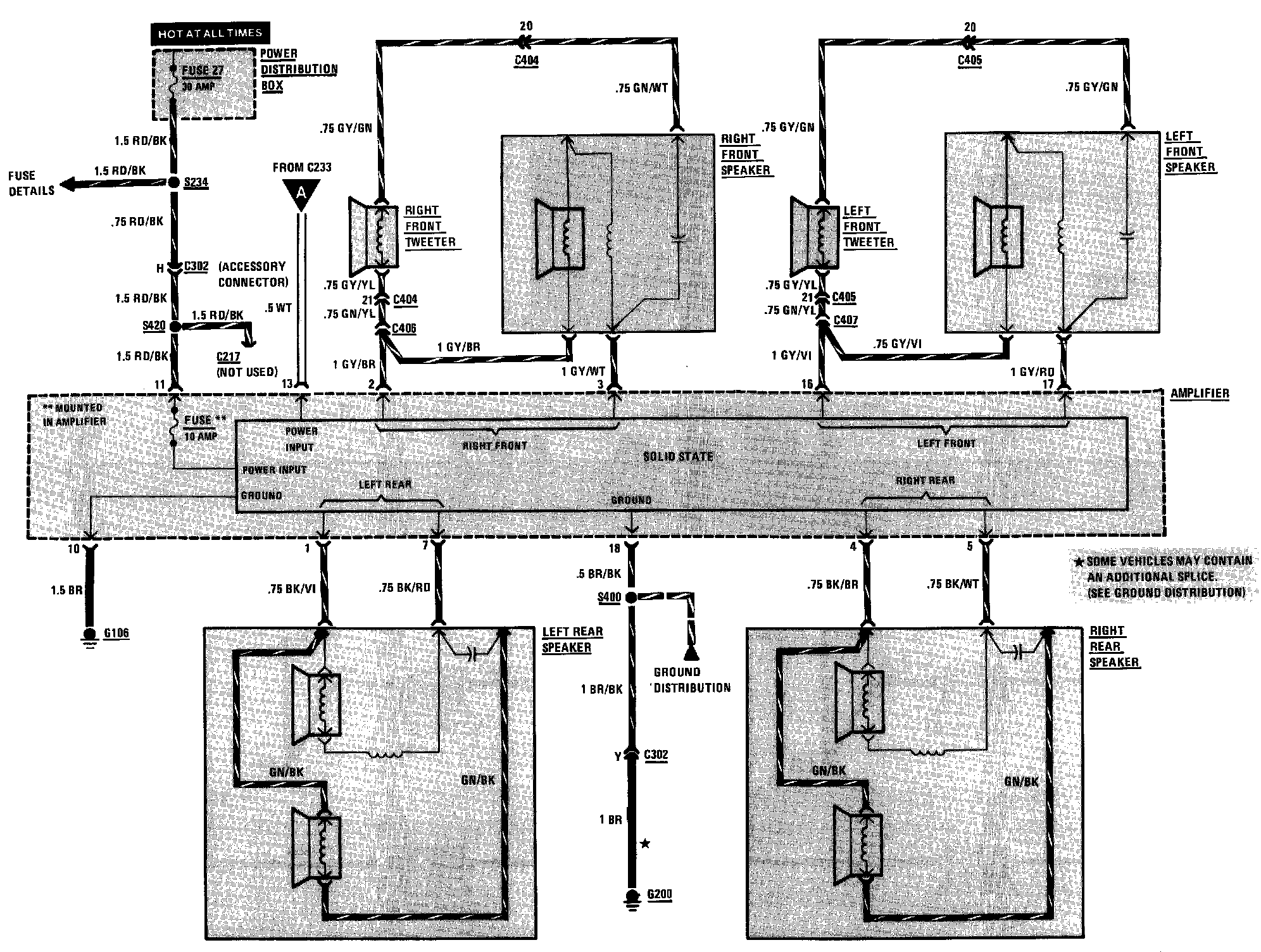

Power Antenna & Radio: With Amplifier:
