Home >> BMW >> 1991 >> 318i Convertible (E30) L4-1796cc 1.8L DOHC (M42) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Compressor Control

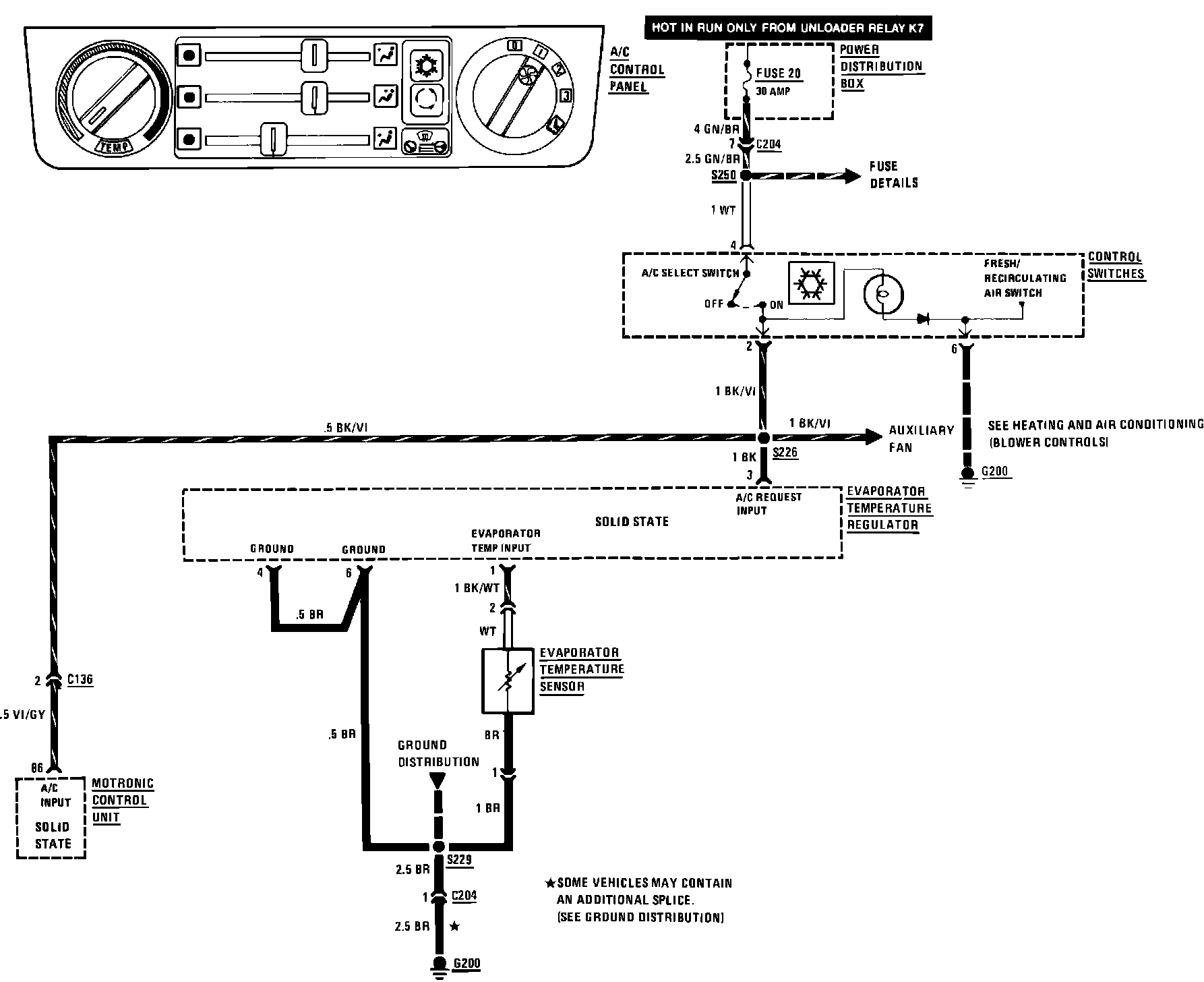

Compressor Control

Air Conditioning & Heater: Compressor Controls:



Air Conditioning & Heater: Compressor Controls:
