Throttle Switch ... C101 - C140
Throttle Switch ... C101 - C140

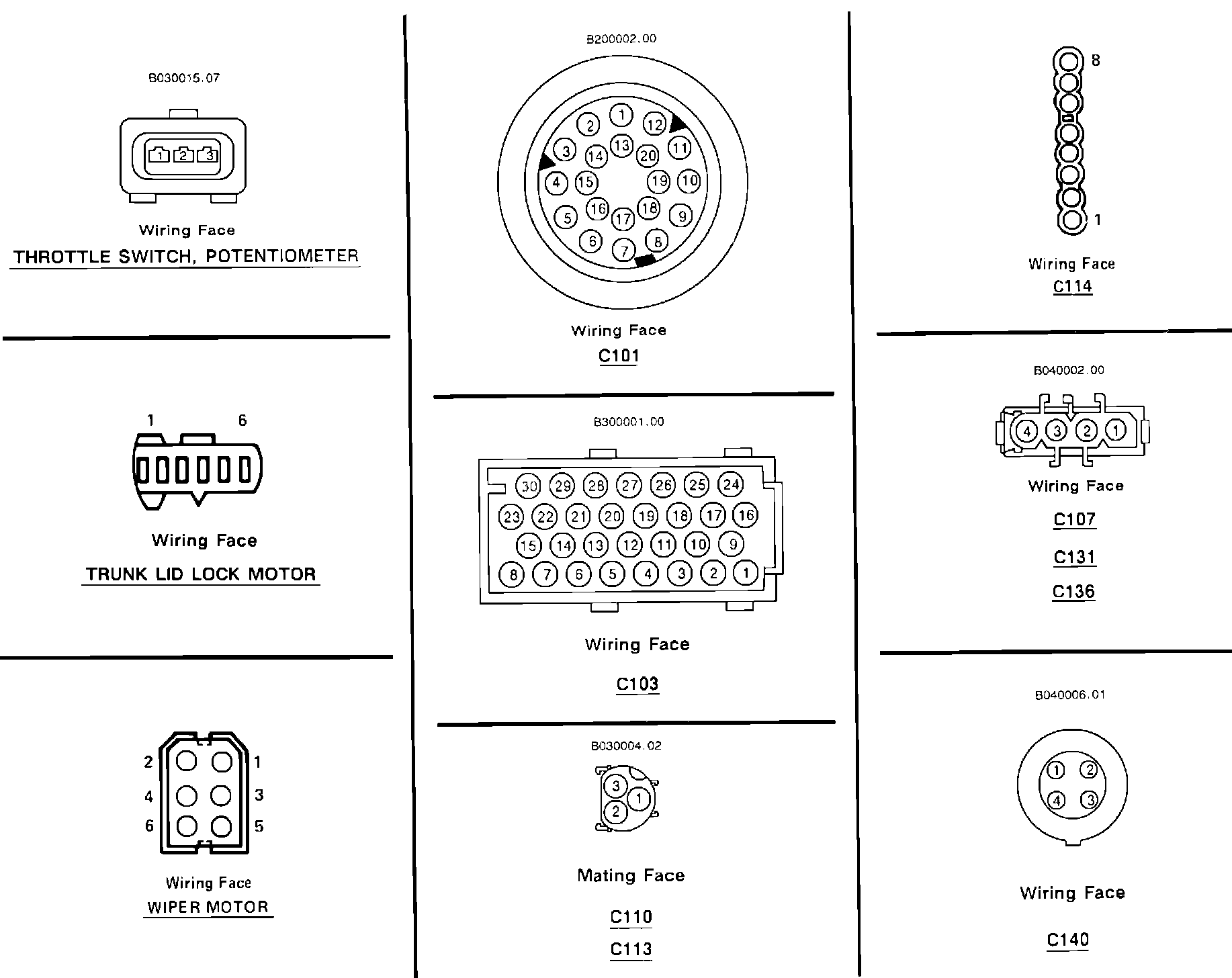

Connector Views: Throttle Switch ... C101 - C140:
