Home >> BMW >> 1991 >> 318i Convertible (E30) L4-1796cc 1.8L DOHC (M42) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views/Pin Assignments >> On-Board Computer .... Rear Light Assembly

On-Board Computer .... Rear Light Assembly

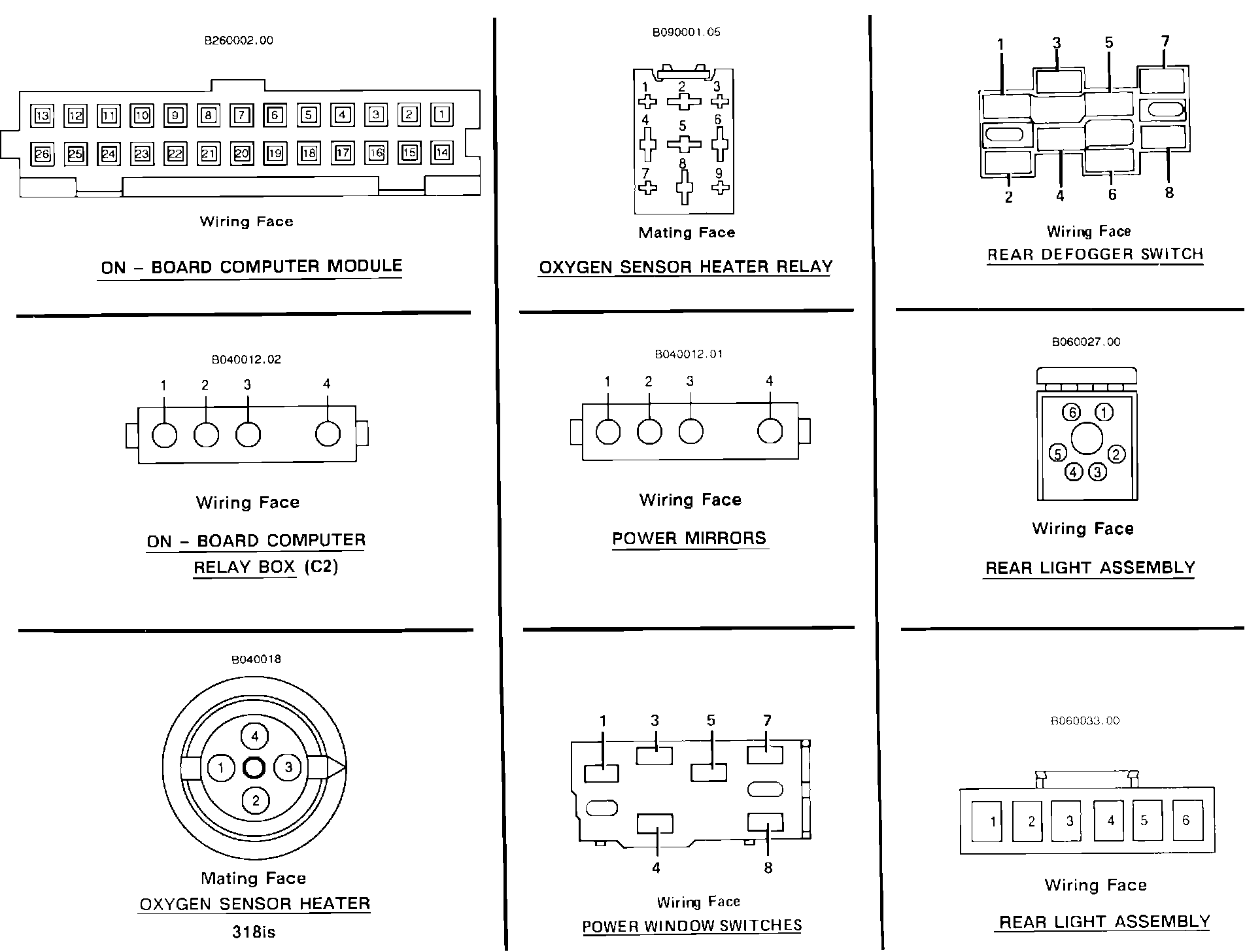

Connector Views: On-Board Computer Module Thru Rear Light Assembly:
