318i Convertible (E30) L4-1796cc 1.8L DOHC (M42)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Engine Control System
>>
Without - BMW DIAGNOSTIC SYSTEM
>>
Basic Descriptions
Basic Descriptions

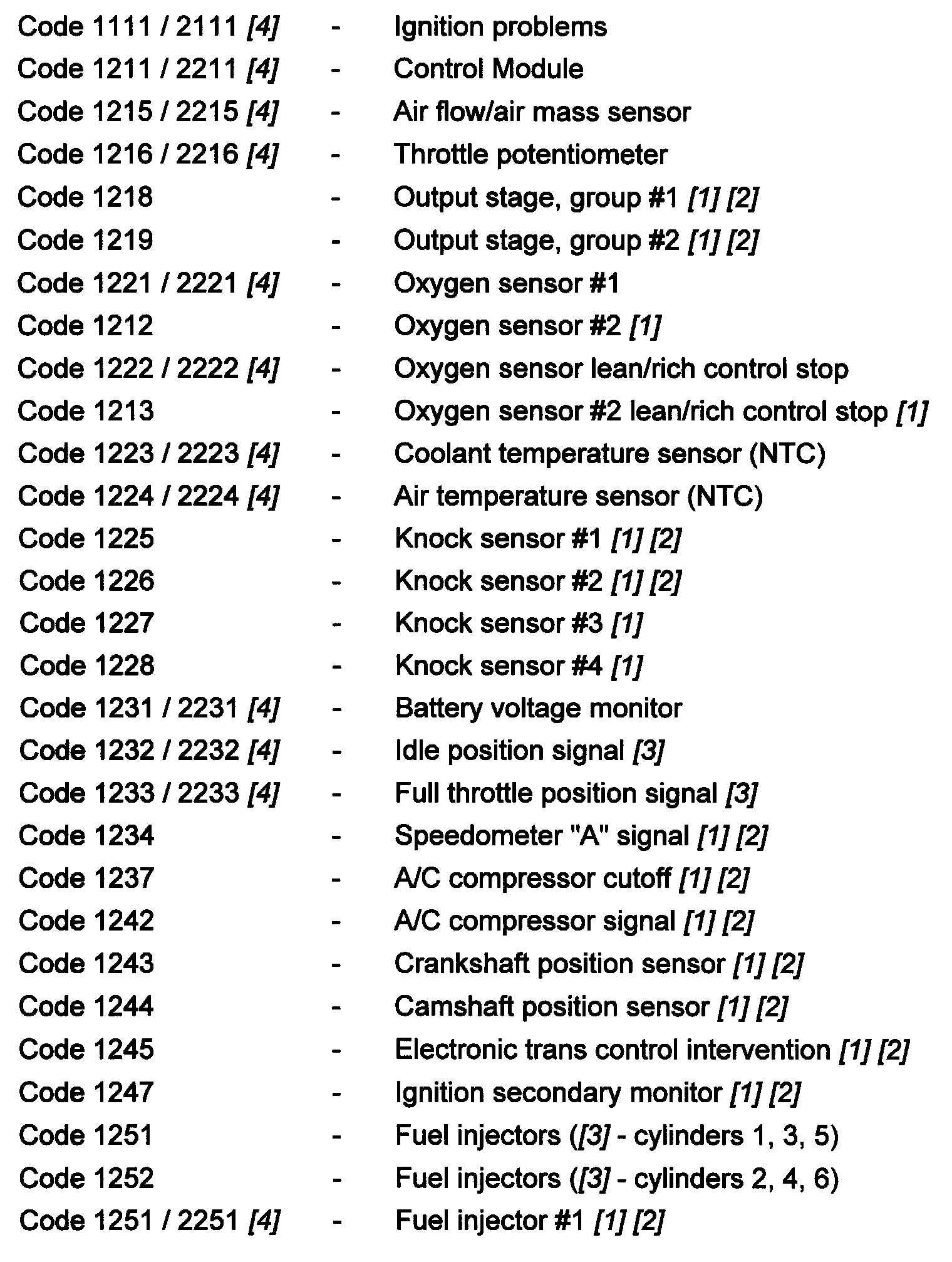

Code 1111/2111 - 1251/2251:

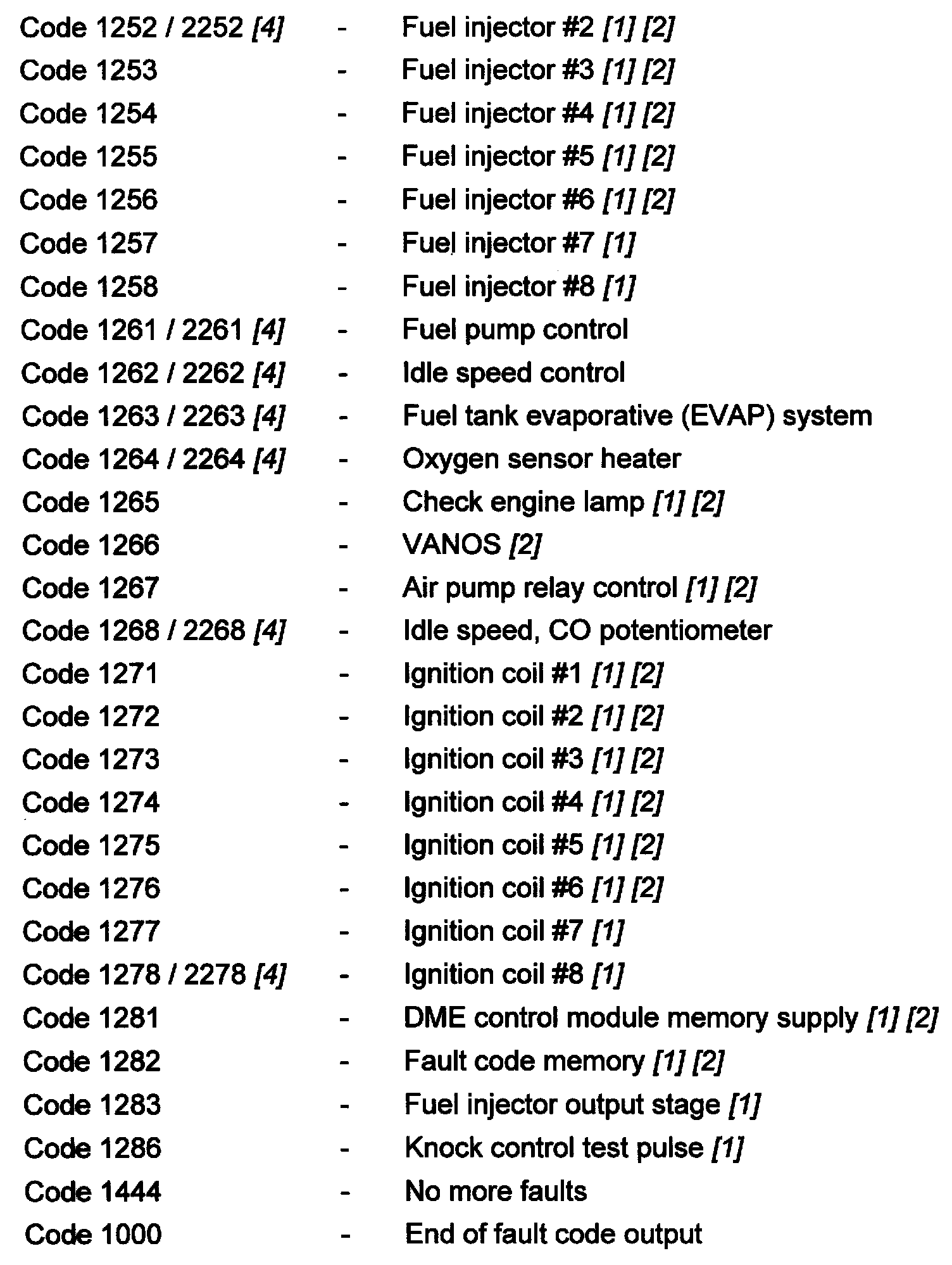

Code 1252/2252 - End Code:
LEGEND
[1]
: DME 3.3
[2]
: DME 3.3.1
[3]
: DME 1.3
[4]
: DME 1.7
