Coolant Temperature Sensor/Switch (For Computer)
>>
Locations
Coolant Temperature Sensor/Switch (For Computer): Locations

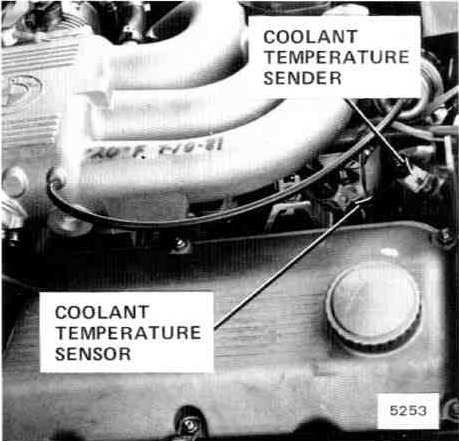

View - Top RH Front Of Engine:
The Coolant Temperature Sensor is located in the thermostat housing.
