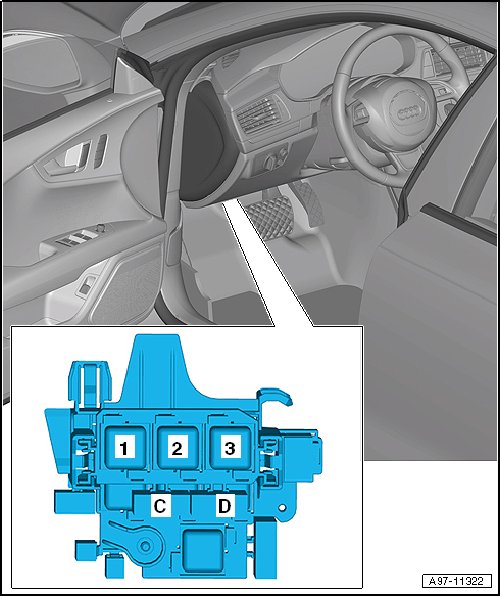

Relay Carrier on Relay Carrier, Behind Left Instrument Panel, Left Hand Drive

Relay carrier on relay carrier, behind left instrument panel, left-hand drive
On relay and fuse carrier behind left instrument panel





1 - Preheating Coolant, Low Heat Output Relay -J359-
2 - Preheating Coolant, High Heat Output Relay -J360-
3 - Not used
C - Heating Element Fuse 1 -S276- , 40 A
D - Heating Element Fuse 2 -S277- , 60 A
