Relay Carrier In Electronics Box Plenum Chamber, Left-Hand Drive

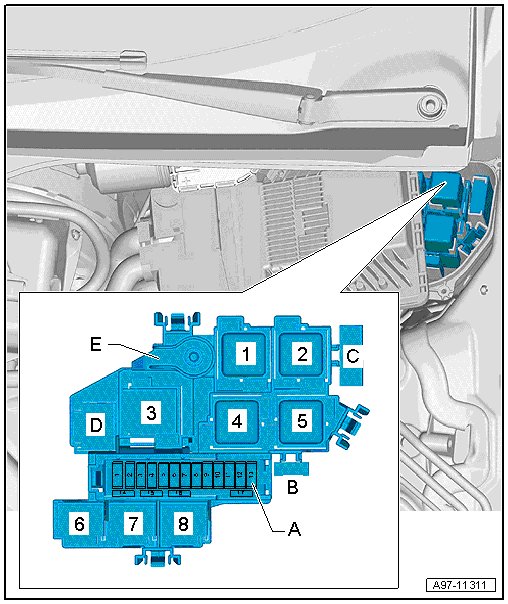

Relay carrier in electronics box plenum chamber, left-hand drive
In electronics box plenum chamber





A - SA-Fuse Panel
B - Secondary Air Injection (AIR) Pump Fuse -S130- gasoline engine, 50 A
B - Glow Plugs Fuse -S125- diesel engine, 60 A
C - Not used
D - Not used
E - Terminal 30
1 - Secondary Air Injection (AIR) Pump Relay -J299- gasoline engine
2 - Starter Relay -J53-
2 - Starter Relay 2 -J695-
3 - Engine Component Power Supply Relay -J757- gasoline engine
3 - Automatic Glow Time Control Module -J179- diesel engine
4 - Main Relay -J271- gasoline engine
4 - Power Supply Relay (terminal 30) -J317- diesel engine
5 - Auxiliary Engine Coolant (EC) Pump Relay -J496- gasoline engine
6 - Not used
7 - 17-Pin Connector -T17b- , red
8 - 17-Pin Connector -T17a- , white
