Overview Of Relay Carrier

Relay

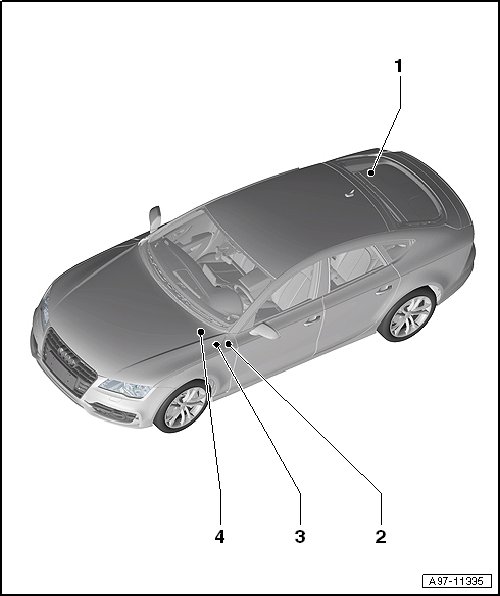

Overview of Relay Carrier







1 - Relay and fuse carrier in luggage compartment, right
• Component: -J9- , -J403- , -J681- , -J807-
• Component Location => [ Relay and fuse carrier in luggage compartment, right ]

2 - Relay carrier on relay carrier, behind left instrument panel, left-hand drive
• Component: -J359- , -J360- , -S276- , -S277-
• Component Location, left-hand drive => [ Relay carrier on relay carrier, behind left instrument panel, left-hand drive ]

3 - Relay carrier behind left instrument panel, left-hand drive
• Component: -J329- , -J413- , -J910- , -S123-
• Component Location, left-hand drive => [ Relay carrier behind left instrument panel, left-hand drive ]

4 - Relay carrier in electronics box plenum chamber
• Component: -J53- , -J179- , -J271- , -J299- , -J317- , -J496- , -J695- , -J757- , -S125- , -S130-
• Component Location, left-hand drive => [ Relay carrier in electronics box plenum chamber, left-hand drive ]
