Overview of Fuses

Fuses

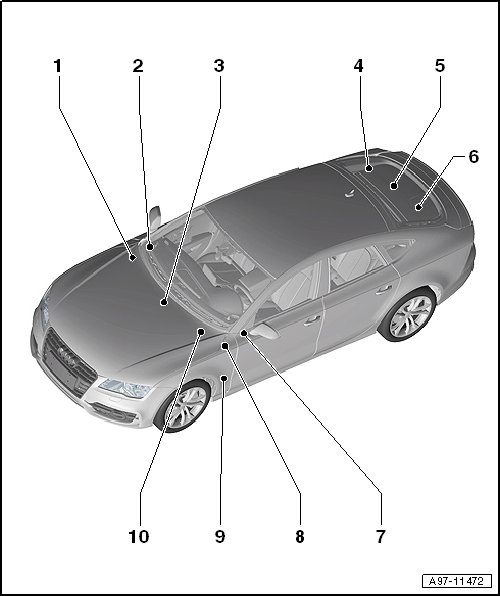

Overview of Fuses







1 Fuses on connector station right A-pillar
• Only right-hand drive
• Component Location and Position of Fuses, right-hand drive
2 Fuses (SC) on fuse panel C
• Component Location and Position of Fuses, left-hand drive => [ Component Location, left-hand drive: ]
3 Terminal 30 Wire Junction -TV2- in center plenum chamber
• Component Location and Position of Fuses => [ ]
4 Fuses (SF) on fuse panel F
• Component Location and Position of Fuses => [ Fuses (SF) on fuse panel F ]
5 Not used
6 Main fuse carrier on battery -A-
• Component Location and Position of Fuses => [ Fuses on Main Fuse Carrier ]
7 Fuses (SB) on fuse panel B
• Component Location and Position of Fuses, left-hand drive => [ Component Location, left-hand drive: ]
8 Fuses (SD) (on fuse panel D)
Only left-hand drive
• Component Location and Position of Fuses, left-hand drive => [ Fuses (SD) (on fuse panel D) ]
9 Fuses on connector station left A-pillar
• Component Location and Position of Fuses, left-hand drive => [ Component Location and Position of Fuses, Left-Hand Drive ]
10 Fuses (SA) on fuse panel A
• Component Location and Position of Fuses, left-hand drive => [ Component Location, left-hand drive: ]
