Fuses on Main Fuse Carrier
Fuses
Fuses on Main Fuse Carrier

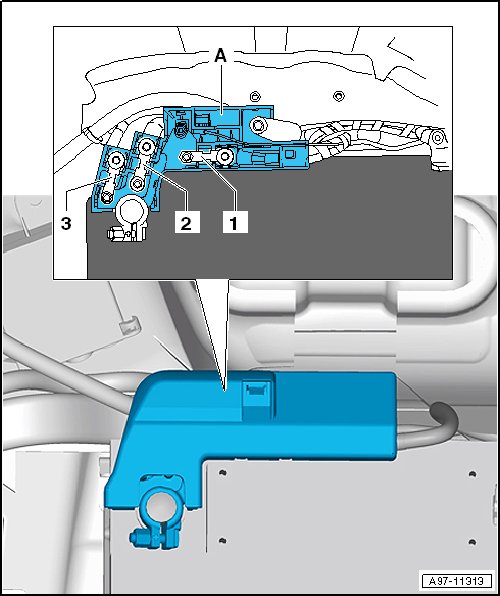

Component Location:
In luggage compartment on Battery -A-
A - Battery Interrupt Igniter -N253-
1 - Safety Fuse 1 -S131- , 150 A
2 - Safety Fuse 2 -S132- , 150 A through CW 43/2011
2 - Safety Fuse 2 -S132- , 110 A from CW 44/2011
3 - Safety Fuse 3 -S133- , 150 A
