Relay / Fuse Panel F -SF- From August 2011

Relay

Relay /Fuse Panel F -SF- from August 2011

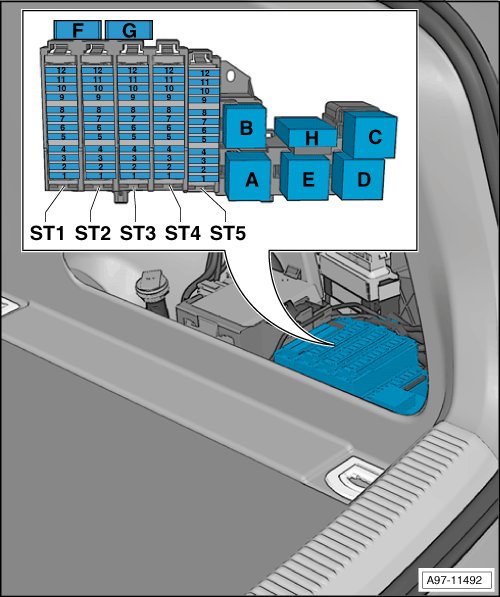

Component Location Relay /Fuse Panel F -SF- from August 2011:
In luggage compartment, behind side trim on right





Position of Relays Coupe (2-door models):
A - Not used
B - Not used
C - Not used
D - Rear Window Defogger Relay -J9-
E - Sockets Relay -J807-
Position of Relays Sportback (5-door models):
A - Rear Window Defogger Relay -J9-
B - Not used
C - Not used
D - Not used
E - Sockets Relay -J807-
