Overview of Relay

Relay

Overview of Relay



Note:
• Overview be valid also for Sportback (5-door models)!

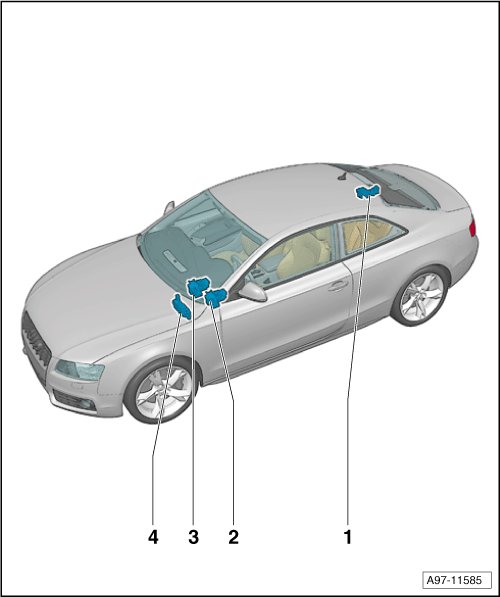

1 - Relay /Fuse Panel F -SF-
• Component: -J9- , -J84- , -J807-
• Component Location for models through July 2011: => [ Relay / through July 2011 ]
• Component Location for models from August 2011: => [ Relay / from August 2011 ]

2 - Relay / fuse panel with Vehicle Electrical System Control Module -J519-
• Component: -J160- , -J318- , -J329- , -J413- , -J601- , -J608- , -J910-
• Component Location for models with left-hand drive => [ Relay / fuse panel with ]
• Component Location for models with right-hand drive => [ ]

3 - 3-Pin relay / fuse panel
• Component: -J359- , -J360- , -J604-
• Component Location for models with left-hand drive => [ 3-Pin relay / fuse panel ]
• Component Location for models with right-hand drive => [ ]

4 - Relay /fuse panel B -SB-
• Component: -J17- , -J53- , -J151- , -J179- , -J271- , -J299- , -J317- , -J496- , -J545- , -J569- , -J695- , -J696- , -J757- , -J832-
• Component Location for models with left-hand drive => [ Relay / ]
• Component Location for models with right-hand drive => [ ]
