Relay / Fuse Panel F -SF- From August 2011

Fuses

Relay /Fuse Panel F -SF- from August 2011


Component Location Relay /Fuse Panel F -SF- from August 2011:
In luggage compartment, behind side trim on right





ST1 - Fuse Carrier 1, => [ Fuses in Fuse Carrier ST1 on (black) ]

ST2 - Fuse Carrier 2, => [ Fuses in Fuse Carrier ST2 on (black) ]

ST3 - Fuse Carrier 3, => [ Fuses in Fuse Carrier ST3 on (brown) ]

ST4 - Fuse Carrier 4, => [ Fuses in Fuse Carrier ST4 on (red) ]

ST5 - Fuse Carrier 5, => [ Fuses in Fuse Carrier ST5 on (black) ]

H - Heated Rear Window Fuse -S41- => [ Single Fuse on ]



Fuses in Fuse Carrier ST1 on Fuse Panel F -SF- (black)









Fuses in Fuse Carrier ST2 on Fuse Panel F -SF- (black)

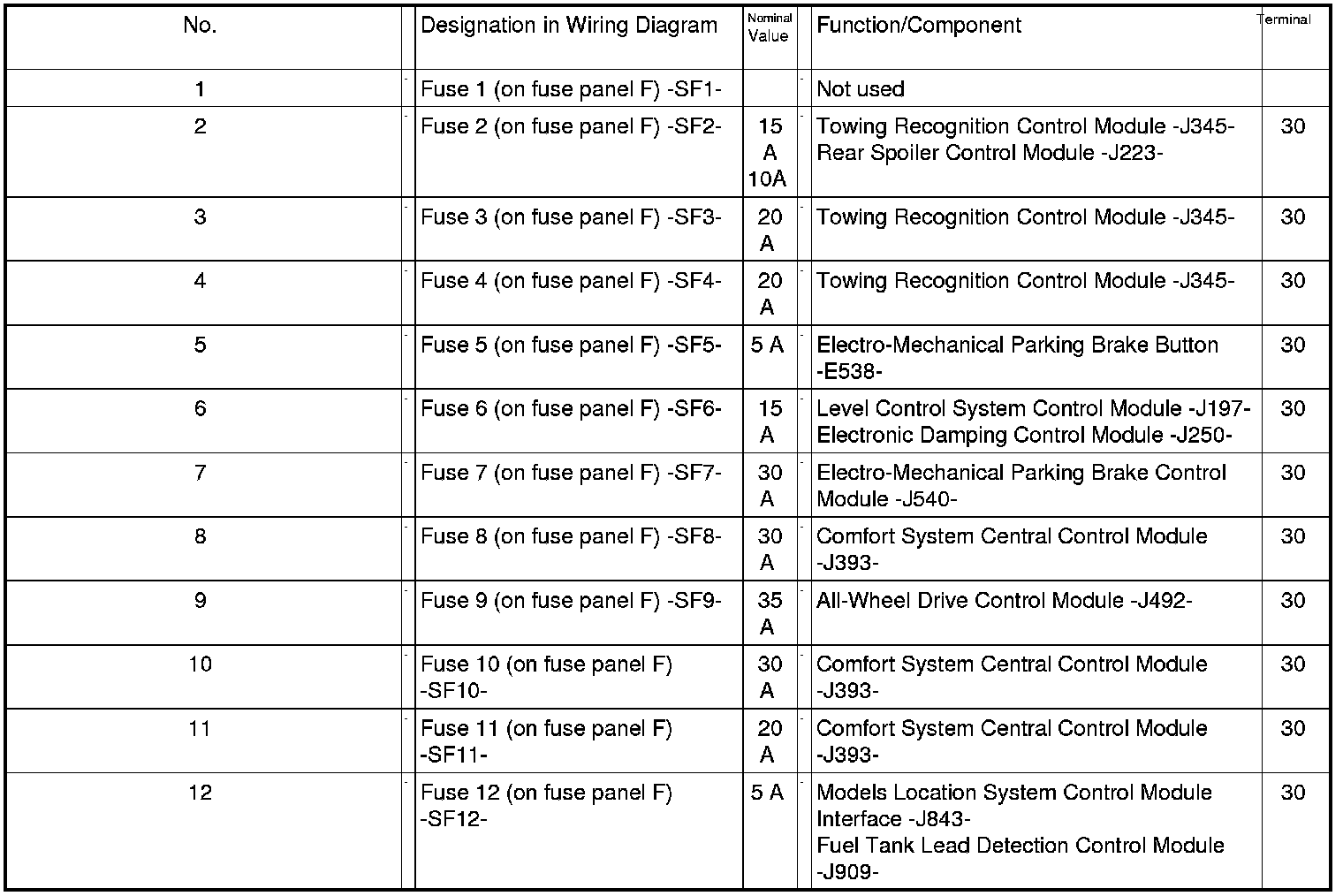

Fuses in Fuse Carrier ST3 on Fuse Panel F -SF- (brown)

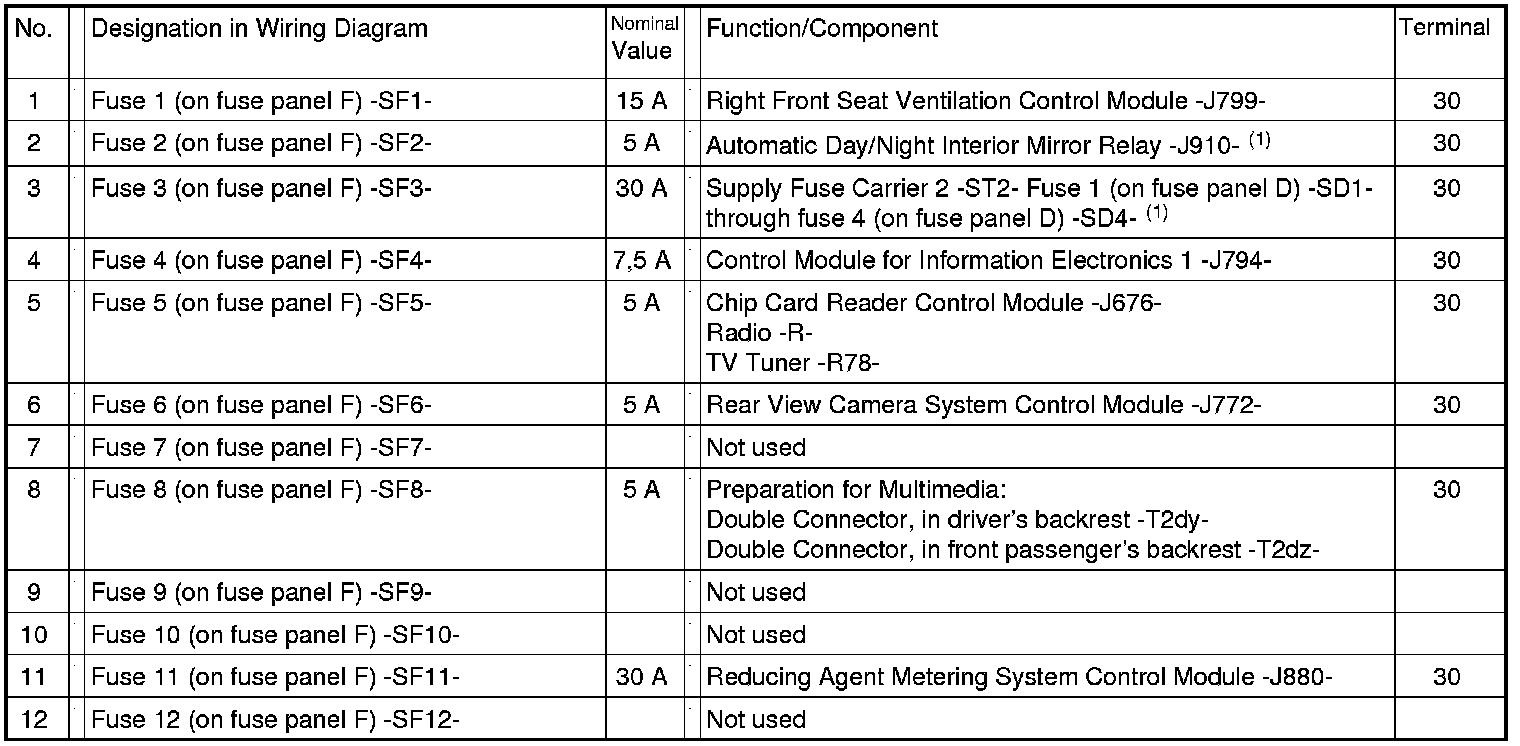

Fuses in Fuse Carrier ST4 on Fuse Panel F -SF- (red)

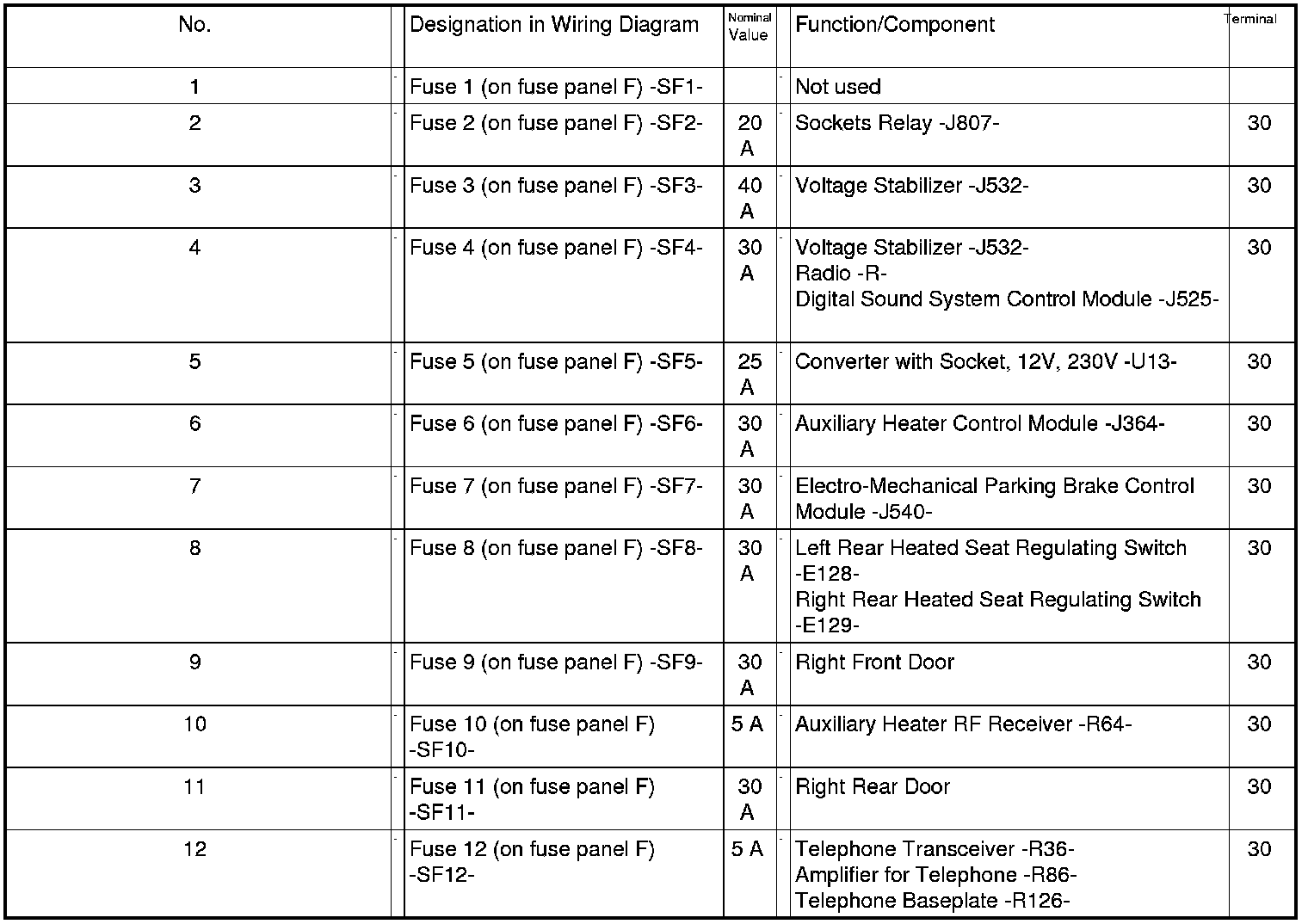

Fuses in Fuse Carrier ST5 on Fuse Panel F -SF- (black)


1) Only models with stop/start system

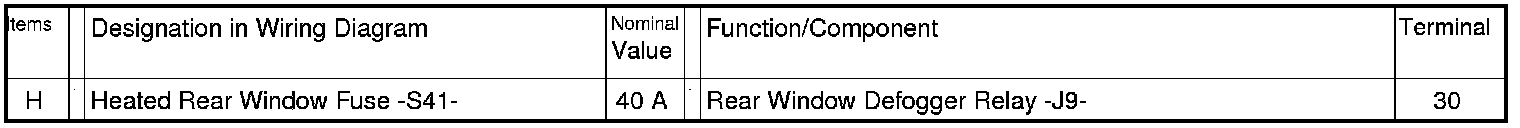

Single Fuse on Fuse Panel F -SF-
