Relay / Fuse Panel B -SB- From August 2011
Fuses
Relay /fuse panel B -SB- from August 2011
Component Location

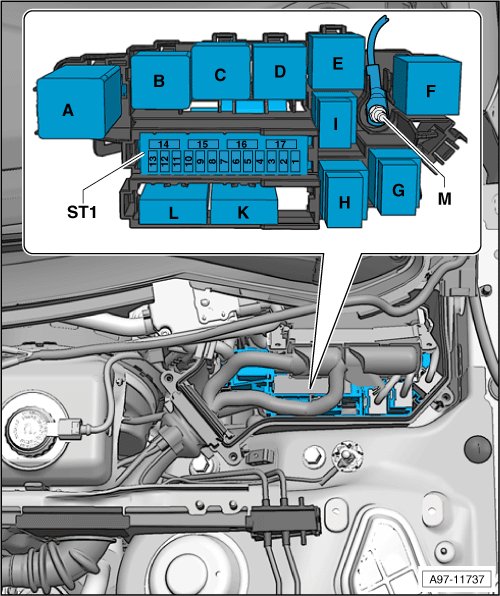

Relay/Fuse Panel B -SB- for models with left-hand
drive, from August 2011:
In Electronics Box (in plenum chamber, driver's side)
1) Only models with cylinder 4 diesel engine
2) Only models with cylinder 6 diesel engine
3) Only models with cylinder 6 gasoline engine
4) Only models with cylinder 8 gasoline engine (only
RS 5)
Note:
• Illustration shows models with left-hand drive.
• Illustration for models with right-hand drive .
K - Strip fuse for engine glow plugs -S39- , 60 A (1)
K - Strip fuse for engine glow plugs -S39- , 80 A (2)
K - Secondary Air Injection (AIR) Pump Fuse -S130- , 50 A (3)
L - Secondary Air Injection (AIR) Pump Fuse 2 -S284- , 50 A (4)
ST1 - Fuse Carrier 1, Fuses => [ Fuses in Fuse Carrier ST1 on (black) ]
Component Location

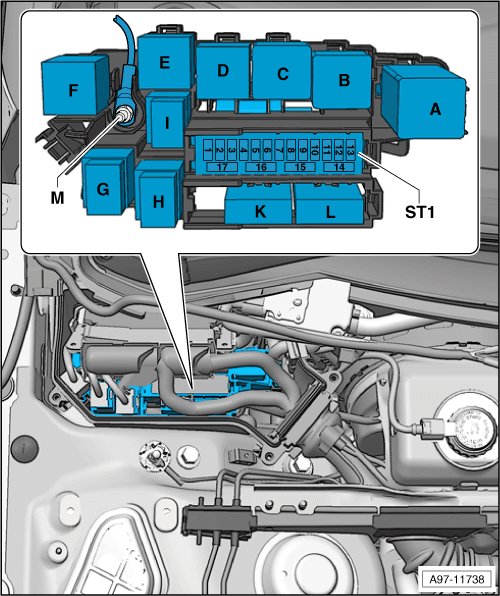

Relay/Fuse Panel B -SB- for models with right-hand
drive, from August 2011:
In Electronics Box (in plenum chamber, driver's side)
5) Only models with cylinder 4 diesel engine
6) Only models with cylinder 6 diesel engine
7) Only models with cylinder 6 gasoline engine
8) Only models with cylinder 8 gasoline engine (only
RS 5)
Note:
• Illustration shows models with right-hand drive.
• Illustration for models with left-hand drive .
K - Strip fuse for engine glow plugs -S39- , 60 A (5)
K - Strip fuse for engine glow plugs -S39- , 80 A (6)
K - Secondary Air Injection (AIR) Pump Fuse -S130- , 50 A (7)
L - Secondary Air Injection (AIR) Pump Fuse 2 -S284- , 50 A (8)
ST1 - Fuse Carrier 1, Fuses => [ Fuses in Fuse Carrier ST1 on (black) ]

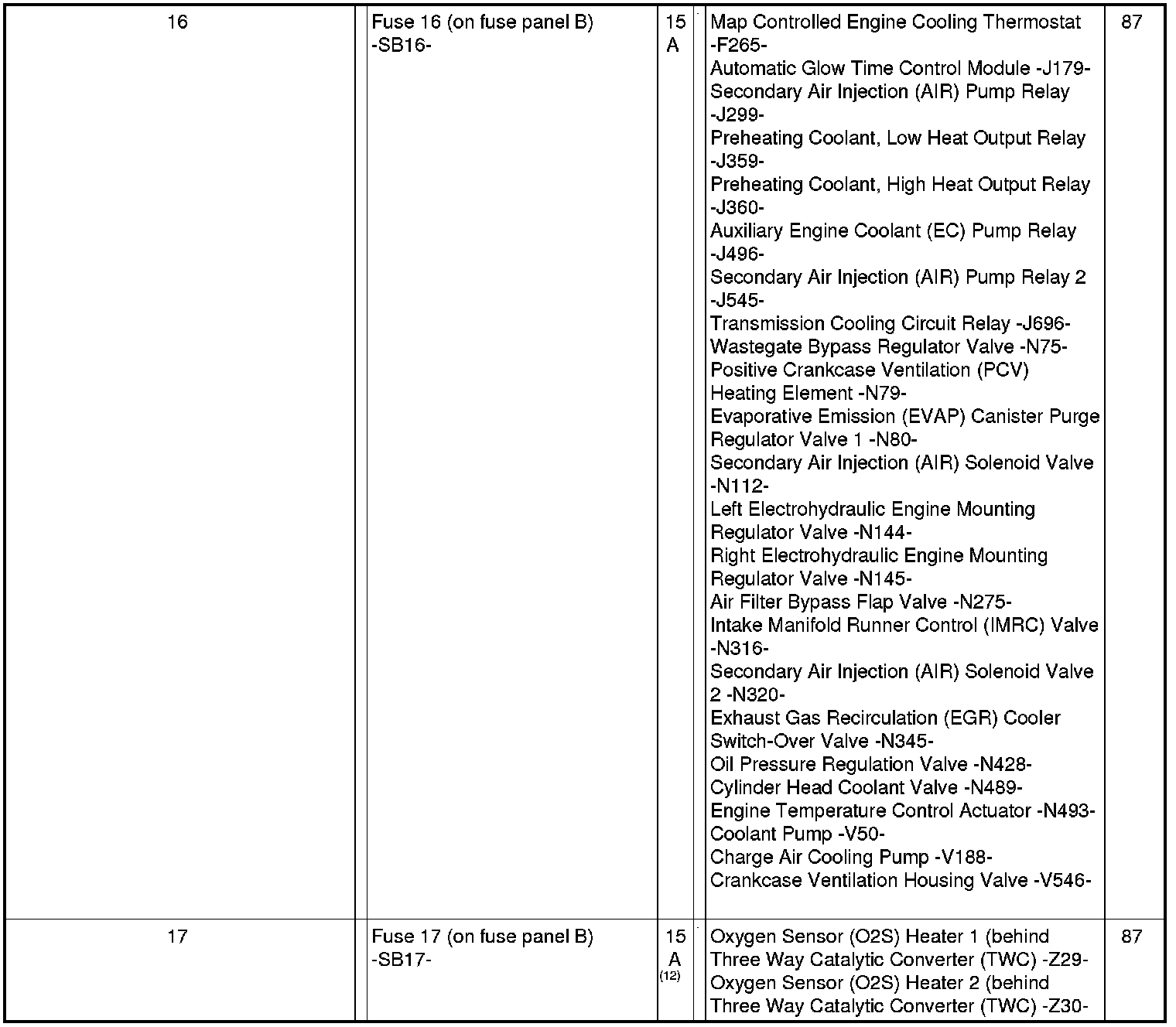

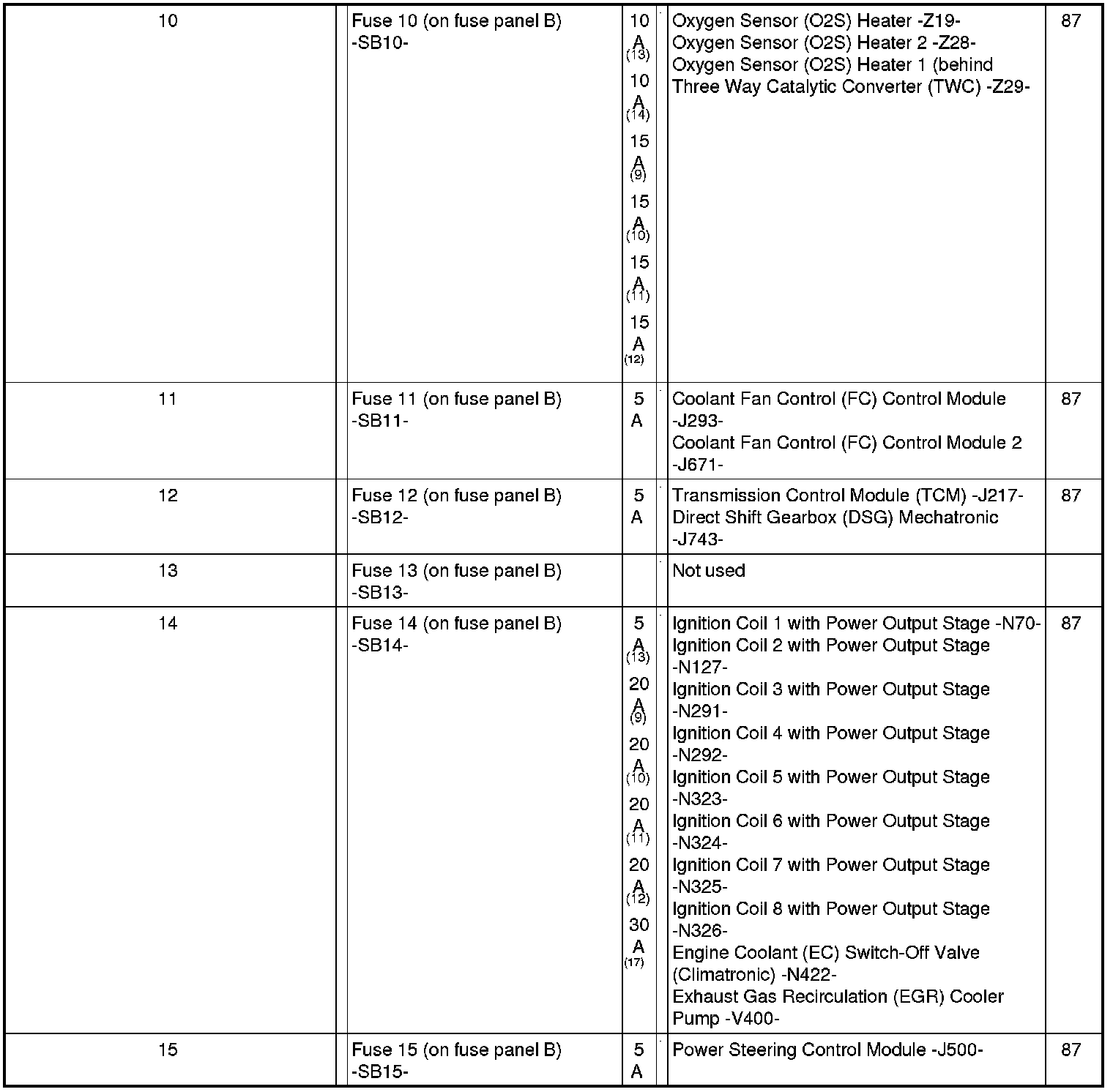

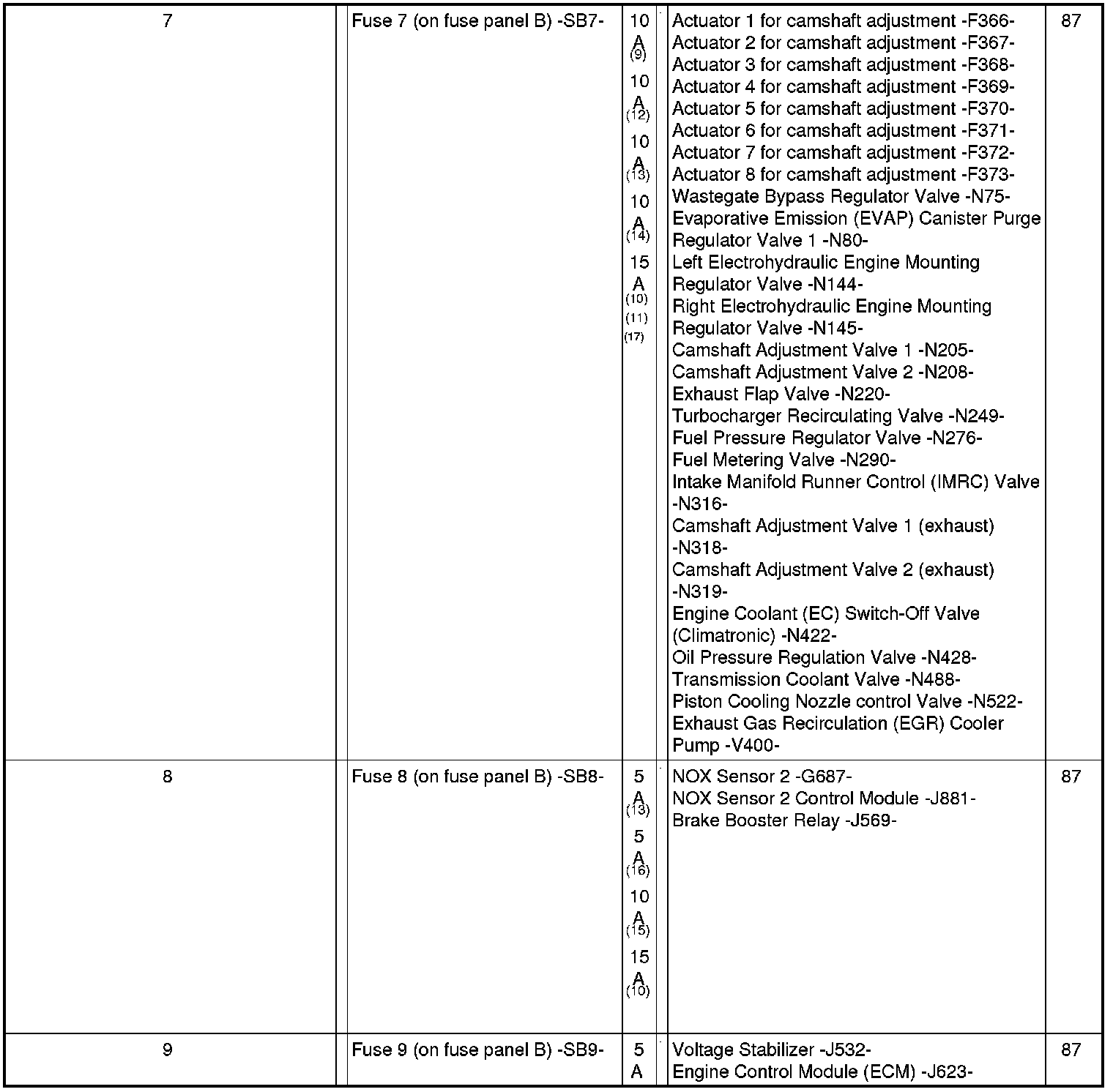

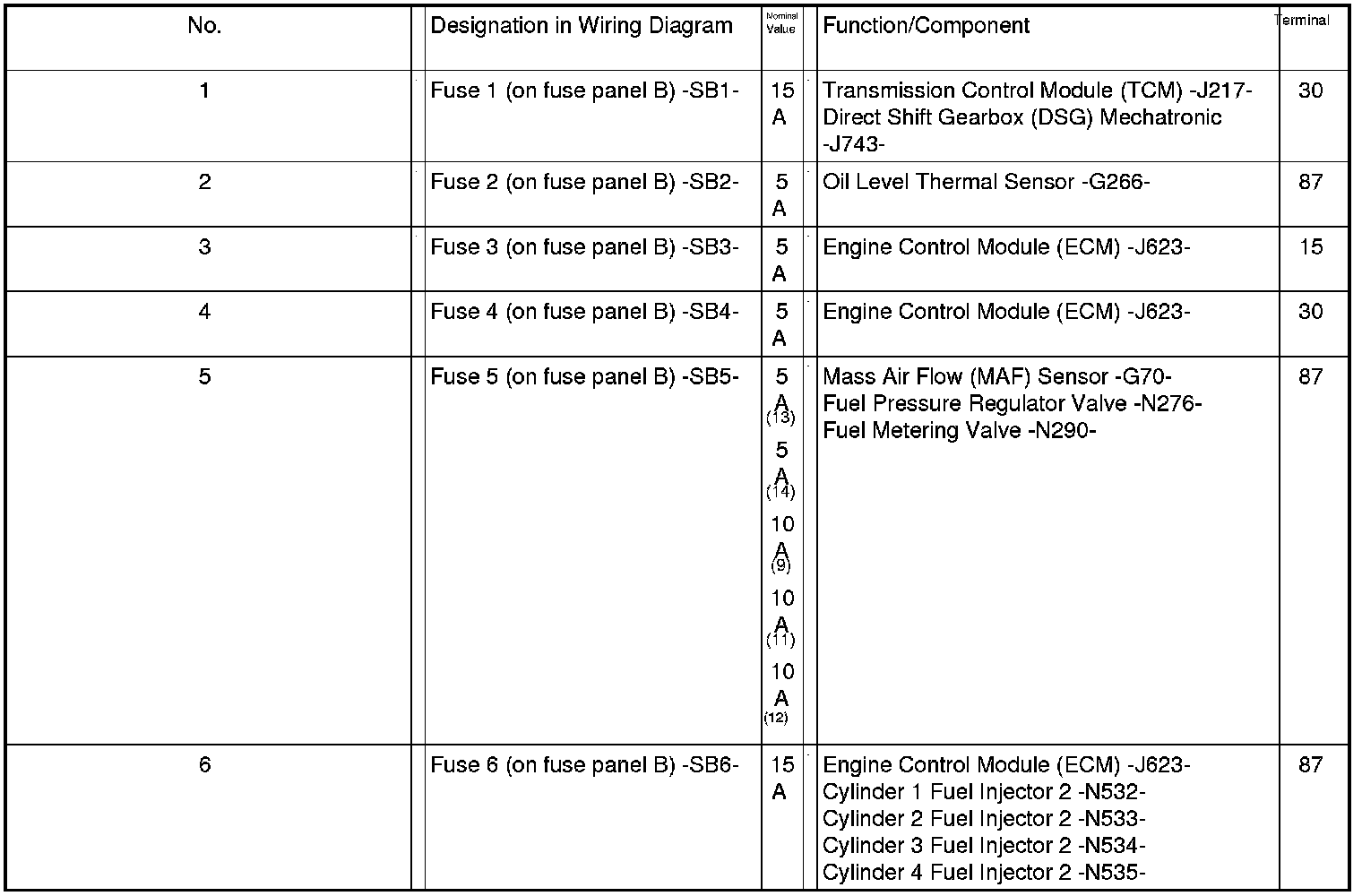

Fuses in Fuse Carrier ST1 on Fuse Panel B -SB- (black)
9) Only models with cylinder 4 gasoline engine (1.8L TFSI
Generation 2)
10) Only models with cylinder 4 gasoline engine (1.8L
TFSI Generation 3)
11) Only models with cylinder 4 gasoline engine (2.0L TFSI)
12) Only models with cylinder 6 gasoline engine (3.0L TFSI)
13) Only models with cylinder 4 diesel engine (2.0L TDI)
14) Only models with cylinder 6 diesel engine (3.0L TDI)
15) Only models with cylinder 6 diesel engine (3.0L TDI
BIN 5)
16) Only models with cylinder 6 diesel engine (3.0L TDI
EU 6)
17) Only models with cylinder 8 gasoline engine (only
RS 5)
